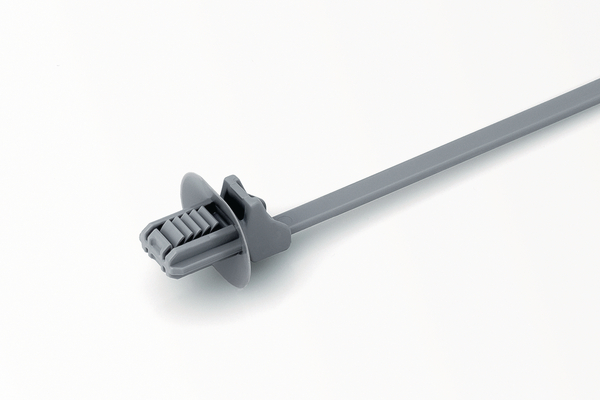

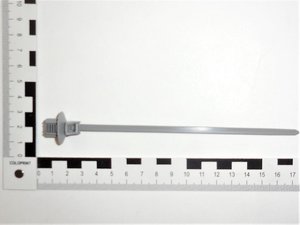

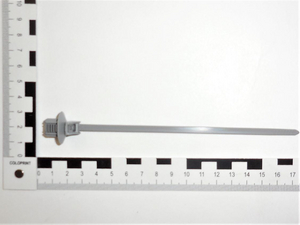

Fixing tie for hole (oval), outside serrated, ∅1.0-35.0mm, grey, 1000pcs.
Cikkszám 157-00069
| T50SOS2DOP62X122-E-PA46-GY
|
Részletek
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 4.6 (PA46) |
| Colour | Grey (GY) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Key product features | products for automatic tools |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | T50SOS2DOP62X122-E-PA46-GY |

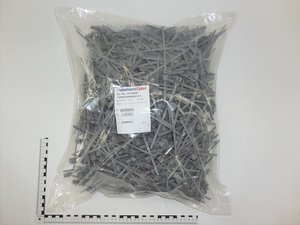

| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SOS2DOP62X122-E |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ | 1.0-35.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0 x 21.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 10.5mm |
| Length (L) | 164.0mm |
| Min.Tensile Strength | 200N |
| Panel Thickness max. | 0.6 - 6.0mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.002137kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm |
| for Panel Thickness min - max | 0.6 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Letöltés
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026311616 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03074m³ |
| Packaging 1 - Weight (kg) | 2.180597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 12.002985kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 117.04kg |
| Packaging 4 - Width (m) | 0.8m |
