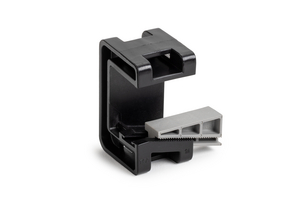

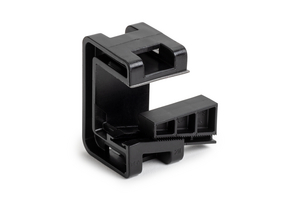

Cable tie mount for edge, T=13.0 - 17.0mm, black, 200pcs.
Art.-No. 151-04368 | BCDLGA-PA66HSGF30-BK |

Copied

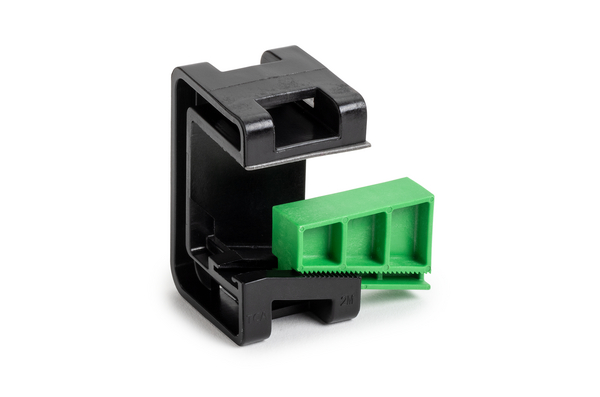

Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment.

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Show more
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting.
    These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK)
    Fixation Method Edge Clip
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30)
    PART DESCRIPTION BCDLGA-PA66HSGF30-BK
    Pack Cont. 200pcs.
    Package Content packed in bag
    Product Family Beam clamps / Wedge clips
    Product Group Heavy duty harness clips
    Short Description Beam clamp for heavy duty applications
    Type BCDLGA

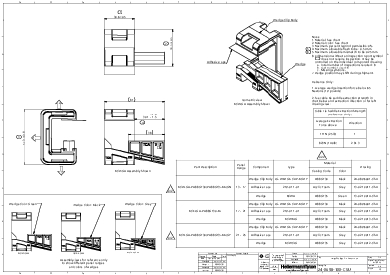

    Height (H) 57.22mm
    Height (H2) 12.5mm
    Length (L) 36.5mm
    Length (L2) 27.0mm
    Panel Thickness max. 13.0 - 17.0mm
    Width (W) 31.0mm
    for Panel Thickness min - max 13 - 17 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Min. Extr. Force (lbs) 25lbs
    Min. Extraction Force (N) 111N
    Operating Temperature -40 °C to +140 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026754826
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
