22/12/2024

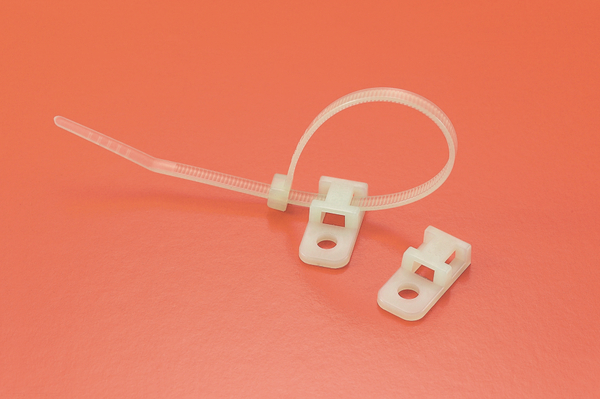

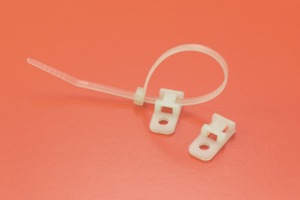

Cable tie mount for screw fixation, Wmax=5.0mm, ∅4.3 mm, M4 Screw, natural, 100pcs.
Art.-No. 151-00541 | CTAM1-PA66HS-NA |  Details

CTAM mounts, for applications with limited space.

    • Suitable for applications with minimal space
    • Mounted before cable installation and in line with cable
    • CTAM has 4-way entry design for use in line or at 90° angle to cable run
    Add to watchlist
    Downloads Datasheet
    Application Each of these products offers particular benefits, but all are designed for simple yet robust installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets these cable tie mounts are also used within the aerospace and railway industry.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION CTAM1-PA66HS-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type CTAM1
    Height (H) 5.1mm
    Height (H2) 1.8mm
    Length (L) 20.5mm
    Strap Width max. (G) 5.0mm
    Width (W) 10.2mm
    for Hole ∅ (FH) 4.3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387941319
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
