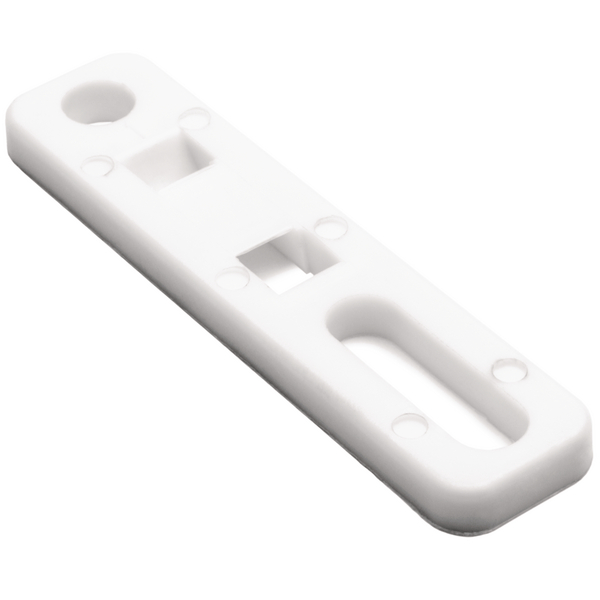

Cable tie mount for screw fixation, Wmax=5.0mm, ∅5.0 x 19.0 mm, #10 (M5) Screw, white, 100pcs.
Art.-No. 151-30200 | CTAP2-PA66-WH |  Details

Cable tie anchor mounts are installed quick and easy by securing a single screw.

    • Suitable for applications with minimal space
    • Mounted before cable installation and in line with cable
    • CTAP mounts offer adjustable stand off feature for precision placement
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications - particularly used in telecoms equipment, switchgear and control cabinets.
    Colour White (WH)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #10 (M5) Screw
    PART DESCRIPTION CTAP2-PA66-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type CTAP2
    Height (H) 3.50mm
    Length (L) 54.1mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.0mm
    Width (W) 12.7mm
    for Hole ∅ (FH) 5.0 x 19.0 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026275529
    Packaging 1 - Weight (kg) 1.994kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
