23/12/2024

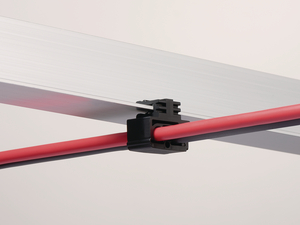

Cable tie mount for edge, Wmax=4.8mm, T=1.6-4.0mm, black, 100pcs.
Art.-No. 151-01590 | GLEC1640-PA11W-BK |  Details

    • Ideal for use where holes are not acceptable.
    • Made of PA11, same as GalvaLok cable ties, GalvaLok Edge-Clip has excellent salt corrosion resistance and insulation resistance.
    Add to watchlist
    Downloads Datasheet
    Application "For wiring construction around solar panels and outdoor galvanized steel plates. Measures to prevent snow melting agents and anti-freezing agents (calcium chloride) in mountainous areas and snowy areas. To counter salt damage at coastal areas."
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 11, UV-resistant (PA11W)
    PART DESCRIPTION GLEC1640-PA11W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family GalvaLok Edge-Clips
    Product Group Fixing Elements for cables with Automatic Locking Feature
    Type GLEC1640
    Height (H) 13.3mm
    Length (L) 15mm
    Panel Thickness max. 1.6-4.0mm
    Strap Width max. (G) 4.8mm
    for Panel Thickness min - max 1.6 - 4 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387113761
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
