23/12/2024

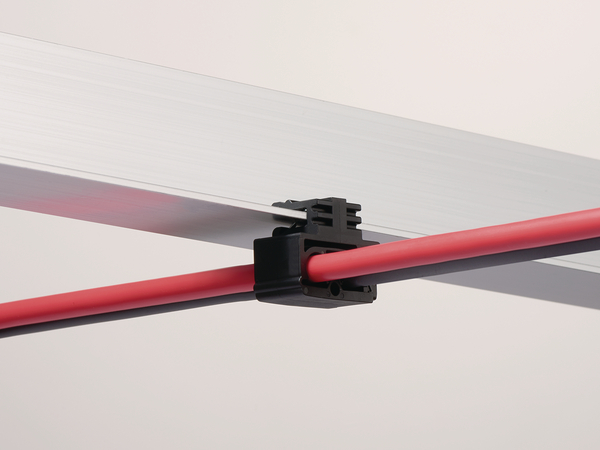

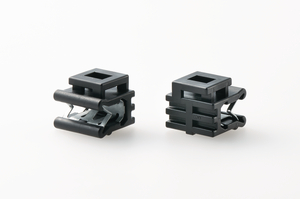

Cable clip for edge, T=3.0mm, Dmin=6.4mm, Dmax=7.1mm
Art.-No. 151-02059 | GLEC1-2VJ-7-PA11W-BK |  Details

    • Push and click closure for fixing 1 or 2 cables.
    • Bundle diameter is from 6.4 to 7.1mm.
    • Ideal for use where holes are not acceptable.
    • Made of PA11, same as GalvaLok cable ties, GalvaLok Edge-Clip has excellent salt corrosion resistance and insulation resistance.
    Add to watchlist
    Downloads Datasheet
    Application For wiring construction around solar panels and outdoor galvanized steel plates. Measures to prevent snow melting agents and anti-freezing agents (calcium chloride) in mountainous areas and snowy areas. To counter salt damage at coastal areas.
    Colour Black (BK)
    Material Polyamide 11, UV-resistant (PA11W)
    PART DESCRIPTION GLEC1-2VJ-7-PA11W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family GalvaLok Edge-Clips
    Product Group Fixing Elements for cables with Automatic Locking Feature
    Short Description Edge Clip (1-3 mm), hose retainer, close, UV-resistant, black
    Type GLEC1-2VJ-7
    Bundle Diameter max (metric) 7.1mm
    Bundle ∅ 6.4-7.1mm
    Bundle ∅ min. 6.4mm
    Height (H) 15mm
    Length (L) 45.3mm
    Panel Thickness max. 3.0mm
    Weight/Unit 0.0059kg
    Width (W) 27.3mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387115765
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.590001kg
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Weight (kg) 12.24002kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 204.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
