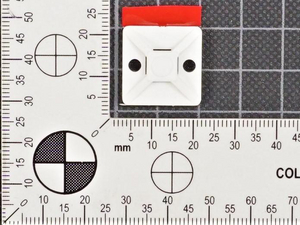

Cable tie mount for adhesive use, Wmax=4.4mm, ∅3.1 mm, white, 100pcs.
Art.-No. 151-01558 | MB3APT-I-PA66-WH |  Details

SolidTack Family with special adhesive.

    • MB mounts with homogeneous system of acrylic adhesive
    • Very good initial adhesion, increases with time
    • Innovative fixing solution for high and low energy surfaces
    • Protection foil with finger lift for easy peel off
    Add to watchlist
    Downloads Datasheet
    Application SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications.
    Colour White (WH)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION MB3APT-I-PA66-WH

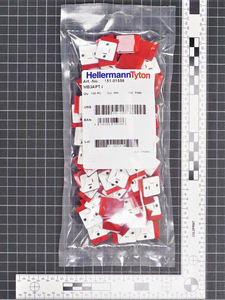

    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family SolidTack-Series MB
    Product Group Cable tie mounts with high performance adhesive
    Short Description Fixing parts with special adhesive 19x19 natural
    Type MB3APT-I
    Fixing Hole Centres (F) 13.2mm
    Height (H) 3.8mm
    Length (L) 19.0mm
    Strap Width max. (G) 4.4mm
    Weight/Unit 0.001029kg
    Width (W) 19.0mm
    for Hole ∅ (FH) 3.1 mm
    Adhesive Acrylate with base of acrylic foam
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026550336
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.28m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00101m³
    Packaging 1 - Weight (kg) 0.10841kg
    Packaging 1 - Width (m) 0.12m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.211kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 168.12kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
