Cable tie mount for screw fixation, Wmax=5.4mm, ∅4.0 mm, white, 100pcs.
Art.-No. 151-28479 | MB4-PA66-WH |  Details

4-way cable tie entry for more installation options.

    • Screwable or self-adhesive versions
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Show more
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet

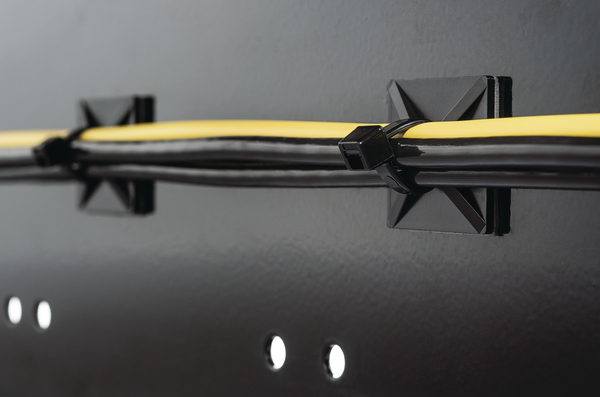

    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.
    Colour White (WH)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION MB4-PA66-WH
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family MB-Series square design, screwable
    Product Group Screw fixing cable tie mounts
    Short Description Screwable Fixing Mount 28x28 natural
    Type MB4

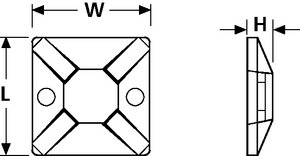

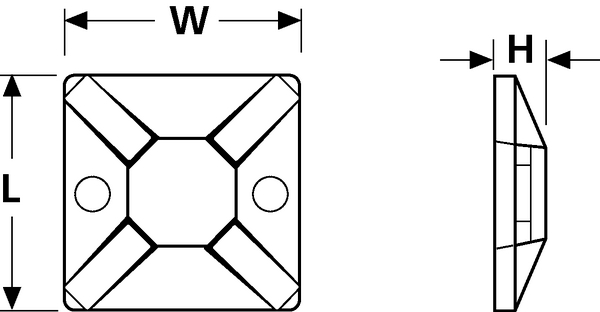

    Fixing Hole Centres (F) 20.0mm
    Height (H) 4.7mm
    Length (L) 28.0mm
    Strap Width max. (G) 5.4mm
    Weight/Unit 0.0017kg
    Width (W) 28.0mm
    for Hole ∅ (FH) 4.0 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660329449
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.203m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00077m³
    Packaging 1 - Weight (kg) 0.180001kg
    Packaging 1 - Width (m) 0.152m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 9.80205kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 217.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.

    Cable tie mounts >
