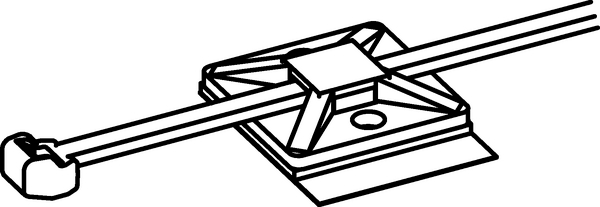

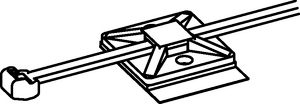

Fixing tie for adhesive use, outside serrated, ∅1-20mm, black
Art.-No. 156-01590 | T18ROSMB2APT-A-SET-PA66HS/PA66-BK Details

Colour Black (BK)
Fixation Method adhesive
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6 (PA66)
PART DESCRIPTION T18ROSMB2APT-A-SET-PA66HS/PA66-BK
Releasable Closure (Yes/No) No
Short Description Cable tie with fixing mount with special adhesive 13x13 black
Tie Closure plastic pawl
Type T18ROSMB2APT-A-SET
Variant Outside Serrated
Bundle Diameter max (metric) 20mm
Bundle ∅ 1-20mm
Bundle ∅ min. 1mm
Length (L) 13mm
Weight/Unit 0.000736kg
Width (W) 13mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026550404
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 3.594kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 92.88kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121731
