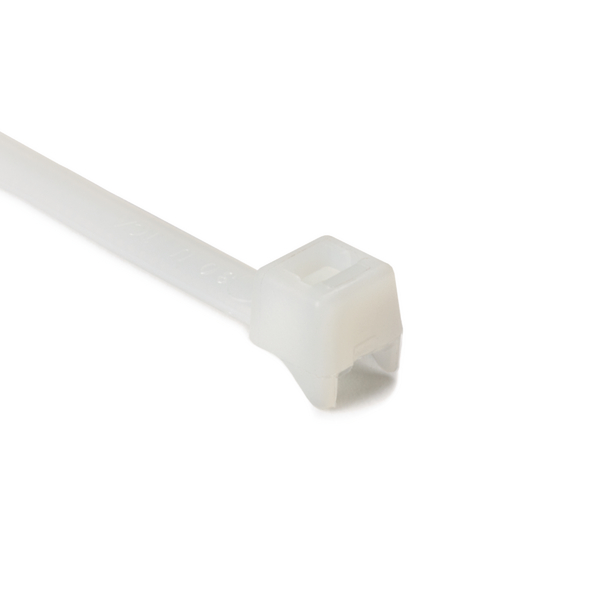

Cable tie inside serrated, 203.2x4.7mm, ∅1.5-45.0mm, natural, 1000pcs.
Art.-No. 112-52106 | CTT60R-PA66-NA |  Details

The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.

    • Curved design of head offers a good fit to the bundle
    • Inside serration for a positive hold onto bundles
    • Easy application either manually or with a processing tool
    Package size
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Application CTT is designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many different industries including automotive, white goods manufacturing, medical industry and construction.
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CTT60R-PA66-NA
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family CTT-Series natural and black
    Product Group Cable ties for hose and gaiter
    Releasable Closure (Yes/No) No
    Short Description Cable tie for hose and gaiter 205x4.7 mm, natural
    Tie Closure plastic pawl
    Type CTT60R
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 203.2mm
    Min.Tensile Strength 267N
    Thickness (T) 1.2mm
    Width (W) 4.7mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026421810
    Packaging 1 - Weight (kg) 0.0012kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.44kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
