14/11/2024

Cable tie inside serrated, 202x4.7mm, ∅8.0-50mm, black, 100pcs.
Art.-No. 111-01705 | ESD200-PPCOND-BK |  Details

    • Electro-conductivity materials with anti-static properties have low resistance values.
    • Can be divided into several groups.
    • Generally, materials with a surface resistance of up to 10¹²Ω are classed as strongly antistatic, below 10⁸Ω as antistatic, and below 10⁴Ω as conductive. Our products have a resistance value of 10²Ω to 10³Ω (Tested using a Mitsubishi Chemical Analytech Loresta-GP machine).
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Application Clean rooms Medical equipment Semi-conductor manufacturing equipment All types of industrial machinery Telecommunications equipment Domestic electrical appliances
    Colour Black (BK)
    Identification Plate Position none
    Material Conductive Polypropylene (PPCOND)
    PART DESCRIPTION ESD200-PPCOND-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family ESD Series
    Product Group Conductive Cable Ties
    Releasable Closure (Yes/No) No
    Type ESD200
    Variant Inside Serrated
    Bundle Diameter max (metric) 50mm
    Bundle ∅ 8.0-50mm
    Bundle ∅ min. 8.0mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 6.8mm
    Cable Tie Head Width (metric) 7.8mm
    Length (L) 202mm
    Min.Tensile Strength 150N
    Thickness (T) 1.3mm
    Weight/Unit 0.00095kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387111262
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00174m³
    Packaging 1 - Weight (kg) 0.12kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.21m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0296m³
    Packaging 3 - Weight (kg) 6.24kg
    Packaging 3 - Width (m) 0.31m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 145.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703

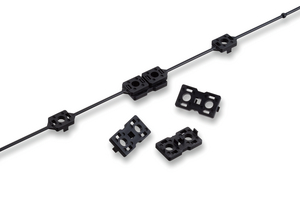

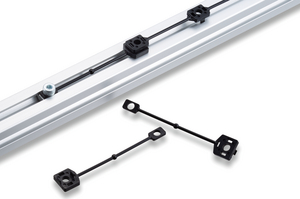

    Edge clips: fasten cables without drilling

    Edge clips are a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Edge clips >

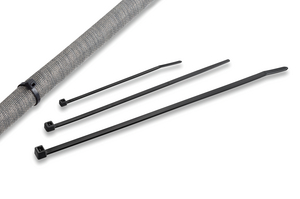

    Cable ties and fixings Cable ties and fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable ties >

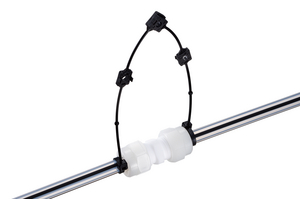

    Cable clips Cable clips
