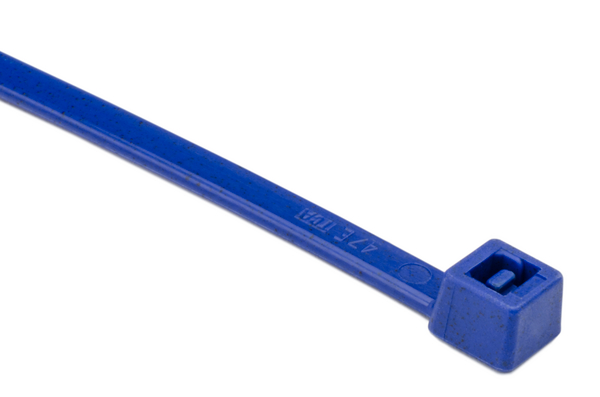

Cable tie inside serrated detectable, 203.2x4.6mm, ∅1.5-50.0mm, blue, 100pcs.
Art.-No. 111-00830
| MCT50R-PA66MD-BU
|
Details
- Total metal dispersion throughout the tie
- Can support quality assurance in the production of food stuffs, for example HACCP
- Blue colour for easy visual detection
- Greatly reduces risk of contamination
- Magnetic detectable (detection level depending on specific application and equipment)
More products in this product group:
| Application | The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process. |
| Colour | Blue (BU) |
| Fixation Method | Cable Tie |
| Identification Plate Position | none |
| Key product features | detectable |
| Material | Polyamide 6.6, metal detectable (PA66MD) |
| PART DESCRIPTION | MCT50R-PA66MD-BU |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | MCT-Series, PA66MP |
| Product Group | Cable ties for food industry, detectable |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Content Tie 202x4.6 mm, PA66MP, blue |
| Tie Closure | plastic pawl |
| Type | MCT50R |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 1.5-50.0mm |
| Bundle ∅ min. | 1.5mm |
| Cable Tie Head Height (metric) | 5.7mm |
| Cable Tie Head Length (metric) | 7.2mm |
| Cable Tie Head Width (metric) | 7.8mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Strap Width max. (G) | 0.31" |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.0013kg |
| Width (W) | 4.6mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660330698 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.246m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00117m³ |
| Packaging 1 - Weight (kg) | 0.160001kg |
| Packaging 1 - Width (m) | 0.136m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 10.40206kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 229.04kg |
| Packaging 4 - Width (m) | 0.8m |
