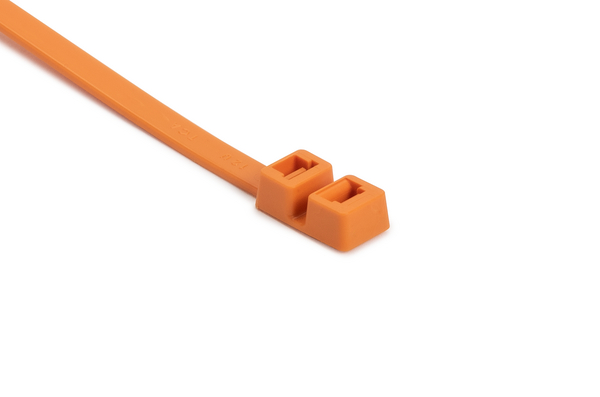

Cable tie inside serrated, 398.0x7.6mm, ∅4.6-101.6mm, orange, 1000pcs.
Art.-No. 117-00028 | T120RDH-PA66HIRHS-OG |  Details

The tie contains a dual locking design to secure two bundles at once.

    • Possibility to separate bundles with only one cable tie
    • Cable tie with two heads creating an inside and outside serrated loop
    • Available in a wide range of materials
    • Bundles can be of different diameter
    • Maximum bundle diameter is a maximum combined bundle
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist
    Downloads Datasheet e-Learning
    Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
    Colour Orange (OG), High Voltage (HV)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T120RDH-PA66HIRHS-OG
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family DH-Series
    Product Group Cable ties for parallel routing
    Releasable Closure (Yes/No) No
    Type T120RDH
    Variant Inside Serrated
    Bundle Diameter max (metric) 101.6mm
    Bundle ∅ 4.6-101.6mm
    Bundle ∅ min. 4.6mm
    Height (H) 7.5mm
    Length (L) 398.0mm
    Min.Tensile Strength 535N
    Width (W) 7.6mm
    ∅ max. 1. loop 101.6mm
    ∅ max. 2. loops 50.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026665917
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
