Cable tie inside serrated, 820.0x8.9mm, ∅8.0-245.0mm, black, 25pcs.
Art.-No. 111-15410
| T150L-PA66HS-BK
|
Details
- Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
- Available in a wide range of sizes to cover almost every application
- Inside serration provides a strong hold onto bundles
- Manual and/or pneumatic tools available for greater process reliability
- Commonly offered in natural and black, other colors available on request
More products in this product group:
| Application | These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T150L-PA66HS-BK |
| Pack Cont. | 25pcs. |
| Package Content packed in | bag |
| Product Family | T-Series in PA66HS black |
| Product Group | Cable Ties for temperatures up to + 105°C (heat stabilised) |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 820x8.8 black |
| Tie Closure | plastic pawl |
| Type | T150L |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 245.0mm |
| Bundle ∅ | 8.0-245.0mm |
| Bundle ∅ min. | 8.0mm |
| Cable Tie Head Length (metric) | 13.0mm |
| Cable Tie Head Width (metric) | 14.0mm |
| Height (H) | 9.5mm |
| Length (L) | 820.0mm |
| Min.Tensile Strength | 780N |
| Strap Width max. (G) | 0.55" |
| Thickness (T) | 1.9mm |
| Weight/Unit | 0.016552kg |
| Width (W) | 8.9mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +125 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026312064 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.83m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00415m³ |
| Packaging 1 - Weight (kg) | 0.413801kg |
| Packaging 1 - Width (m) | 0.125m |

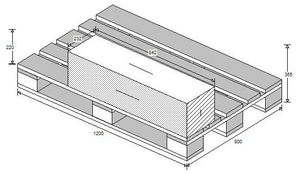

| Packaging 3 - Height (m) | 0.22225m |
| Packaging 3 - Length (m) | 0.84455m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0441m³ |
| Packaging 3 - Weight (kg) | 8.92602kg |
| Packaging 3 - Width (m) | 0.23495m |

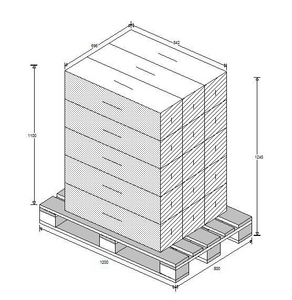

| Packaging 4 - Height (m) | 1.254m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.204m³ |
| Packaging 4 - Weight (kg) | 154.89kg |
| Packaging 4 - Width (m) | 0.8m |
