22/12/2024

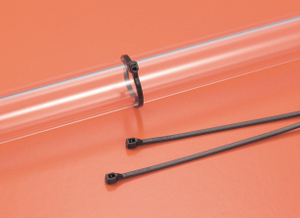

Cable tie inside serrated, 203.2x2.5mm, ∅1.5-55.0mm, black, 100pcs.
Art.-No. 111-02012 | T18L-PA66W-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • UV-resistant black cable tie available in a wide range of sizes
    • Made from 100 % high quality plastic, allows for good recycling
    • Inside serration for a strong hold onto bundles
    • Easy application either manually or with a processing tool
    • Simple to insert due to bent tail
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet e-Learning
    Application These inside serrated cable ties are made of UV-resistant Polyamide 6.6 (PA66W) and thus suitable for outdoor applications. UV stabilized cable ties resist UV radiation for a considerably longer period compared to standard PA66 cable ties. They can easily be used for bundling and securing cables, pipes and hoses especially in outdoor areas.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T18L-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family T-Series in PA66W black
    Product Group Cable Ties for outdoor use (UV-resistant)
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 200x2.5 black
    Tie Closure plastic pawl
    Type T18L
    Variant Inside Serrated
    Bundle Diameter max (metric) 55.0mm
    Bundle ∅ 1.5-55.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.5mm
    Height (H) 3.9mm
    Length (L) 203.2mm
    Min.Tensile Strength 80N
    Strap Width max. (G) 0.18"
    Thickness (T) 1.2mm
    Width (W) 2.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications IEC 62275:2006
    UV-Stabilised Yes
    Country of Origin GB
    GTIN-13 / EAN 5022660182747
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.3kg
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
