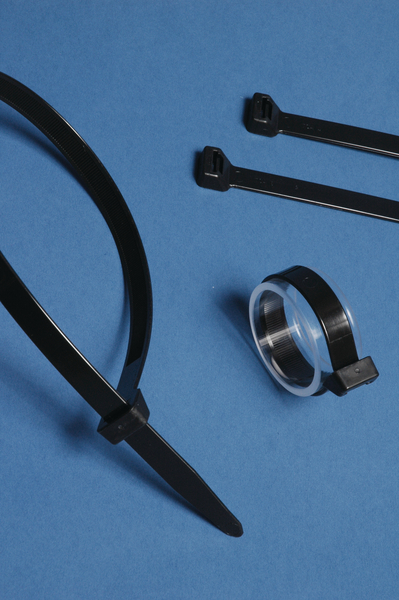

Cable tie inside serrated, 226.06x12.7mm, ∅12.5-55.9mm, black, 25pcs.
Art.-No. 111-00929 | T255S-PA66HIRHSUV-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist
    Downloads Datasheet e-Learning

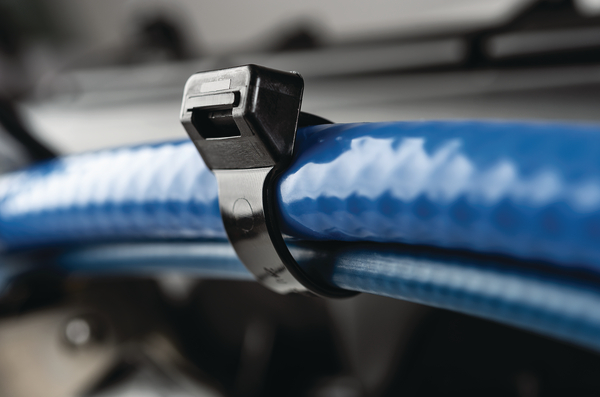

    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T255S-PA66HIRHSUV-BK
    Pack Cont. 25pcs.
    Package Content packed in bag
    Product Family T-Series in PA66HIR
    Product Group Cable Ties impact modified
    Releasable Closure (Yes/No) No
    Type T255S
    Variant Inside Serrated
    Bundle Diameter max (metric) 55.9mm
    Bundle ∅ 12.5-55.9mm
    Bundle ∅ min. 12.5mm
    Length (L) 226.06mm
    Min.Tensile Strength 1115N
    Width (W) 12.7mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026423845
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
