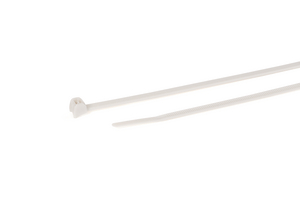

Cable tie inside serrated, 150.0x3.9mm, ∅4.5-36mm, natural, 100pcs.
Art.-No. 111-02207 | TBT150-PA66-NA |  Details

The rounded head shape of the TBT Cable tie series adapts to the tubes and hoses and is intended for all applications where an autoclave process is used.

    • Primarily designed for fixing medical tubes and hoses.
    • The round-edge head allows circular surface contact.
    • Head structure that leaves little of the tail exposed after the cable tie is cut off.
    Add to watchlist
    Downloads Datasheet e-Learning
    Application Fixing tubes and hoses.
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TBT150-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family TBT-Series
    Product Group Sterilisable cable tie formed to fit the shape of tubing
    Releasable Closure (Yes/No) No
    Type TBT150
    Variant Inside Serrated
    Bundle Diameter max (metric) 36mm
    Bundle ∅ 4.5-36mm
    Bundle ∅ min. 4.5mm
    Cable Tie Head Height (metric) 6.6mm
    Cable Tie Head Length (metric) 6.0mm
    Cable Tie Head Width (metric) 6.8mm
    Length (L) 150.0mm
    Min.Tensile Strength 150N
    Thickness (T) 1.3mm
    Width (W) 3.9mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387114881
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
