19/11/2024

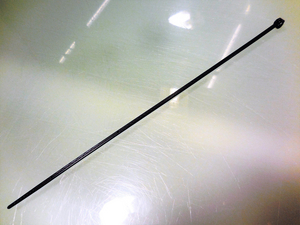

Cable tie outside serrated with antislip engraving, 200x2.5mm, ∅1.6-51mm, black, 1000pcs.
Art.-No. 118-00137 | T18LOS-AS-PA66HS-BK |  Details

Outside serrated OS-Series cable tie with smooth surface to the bundle.

    • Outside serrated cable tie with smooth surface to the bundle
    • Tie follows the contours of the cable bundle perfectly
    • Takes up less space due to curved head design
    • Smooth to the bundle, reduces radial and lateral movement
    • Easy insertion combined with high tensile strength
    • PA46 material for higher temperatures up to +150 °C
    • PA66V0 cable ties fulfill Limited Fire Hazard requirements
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T18LOS-AS-PA66HS-BK

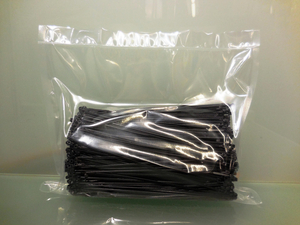

    Pack Cont. 1000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18LOS-AS
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 51mm
    Bundle ∅ 1.6-51mm
    Bundle ∅ min. 1.6mm
    Length (L) 200mm
    Mechanical Strength 90N
    Min.Tensile Strength 90N
    Weight/Unit 0.000561kg
    Width (W) 2.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Vibrations absorbing No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026565279
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.574862kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 20000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 12.14724kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 400000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 264.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
