22/02/2025

Releasable cable tie, 250.0x7.4mm, ⌀2.5-72.0mm, 225N, black, 100pcs.
Art.-No. 115-00049 | RF250-PA66-BK |  Details

Releasable cable ties feature an integrated release mechanism on the head

    • Variety of colors are prepared for identification purposes
    Add to watchlist
    Downloads
    Application Can be used for temporal bandling, cable identification, and as packing material.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RF250-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family RF Series
    Product Group Reusable tie
    Releasable Closure (Yes/No) Yes
    Type RF250
    Bundle ⌀ 2.5-72.0mm
    Bundle ⌀ min. 2.5mm
    Bundle Diameter max (metric) 72.0mm
    Cable Tie Head Height (metric) 7.8mm
    Cable Tie Head Length (metric) 19mm
    Cable Tie Head Width (metric) 11.0mm

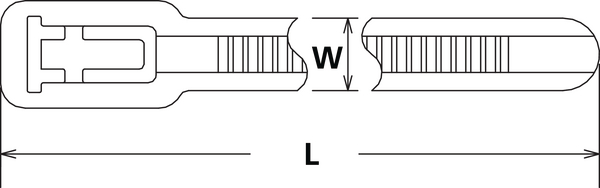

    Length (L) 250.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 7.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64962
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387218091
    Packaging 3 - Weight (kg) 15.48kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
