23/02/2025

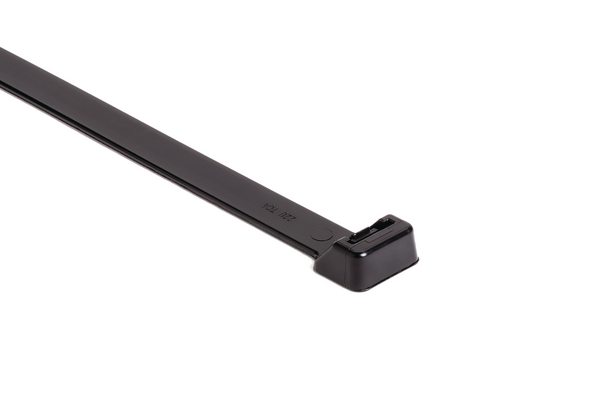

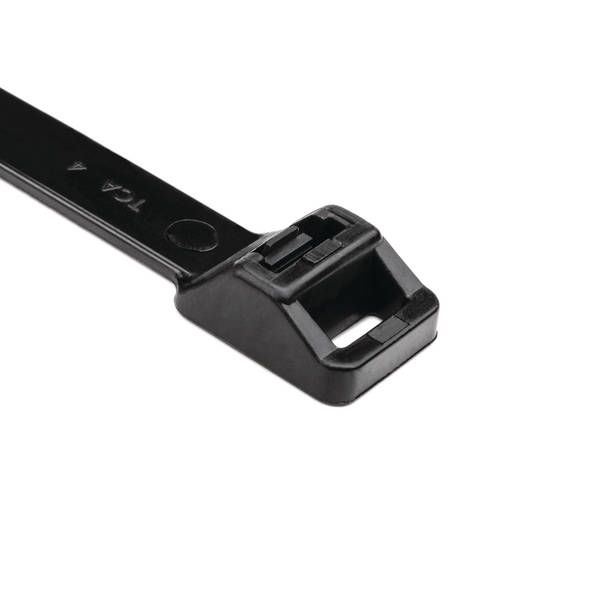

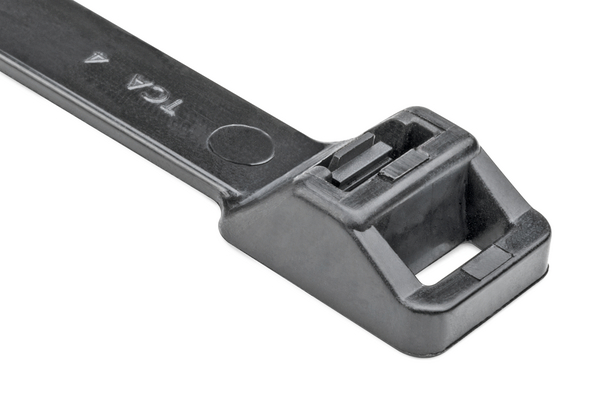

Releasable cable tie, 370.0x12.6mm, ⌀13.0-100.0mm, 1115N, black, 25pcs.
Art.-No. 115-42101 | SR255X-PA66HIRHSUV-BK Details

  • Releasable and reusable cable tie
  • Suitable for lager and heavier bundles
  • Extended trigger for simple and quick release of ties
  • Protected trigger to avoid accidental release
Package size
Application SR255 Series heavy-duty cable ties offer a release feature in the head allowing for easy installation with the use of a cable tie tool. The head design guarantees high tensile strength even after repeated use, as well as a low insertion force.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SR255X-PA66HIRHSUV-BK
Pack Cont. 25pcs.
Package Content packed in bag
Product Family SR255-Series
Product Group Cable ties releasable for heavier bundles
Releasable Closure (Yes/No) Yes
Short Description Releasable cable tie, 370.0x12.6mm, ⌀13.0-100.0mm, 1115N, black, 25pcs.
Type SR255X
Bundle ⌀ 13.0-100.0mm
Bundle ⌀ min. 13.0mm
Bundle Diameter max (metric) 100.0mm

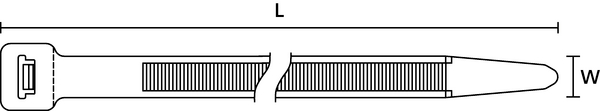

Length (L) 370.0mm
Min.Tensile Strength 1115N
Strap Width max. (G) 0.49"
Strap Width max. (G) 12.5mm
Weight/Unit 0.009788kg
Width (W) 12.6mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026424484
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 25
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00222
Packaging 1 - Weight (kg) 0.244701kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 5.51402kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 131.28kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
