For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

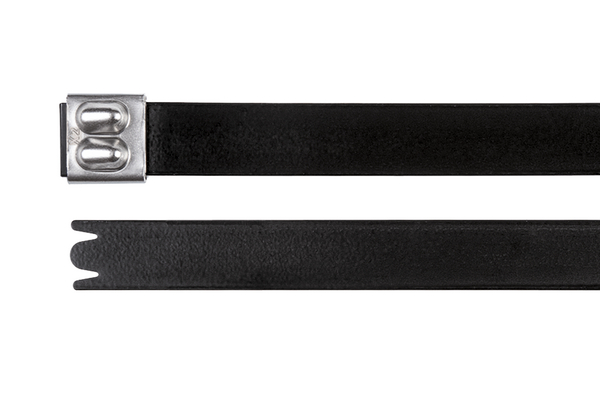

Stainless steel cable tie, ball bearing lock, 521x4.6mm, ∅17-152mm, black, 100pcs.
Art.-No. 111-00291
| MBT20SFC-SS316L/SP-BK
|
Details
- Fully coated MBT, made from type 316 stainless steel with polyester coating
- Non-releasable locking feature
- Coated cable tie with smooth edges
- Comfortable handling and installation
- Eliminates contact corrosion between dissimilar materials during application
More products in this product group:
| Application | Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures. These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Key product features | vibration absorbing |
| Material | Stainless Steel (SS316L), Polyester (SP) |
| PART DESCRIPTION | MBT20SFC-SS316L/SP-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | MBT-FC-Series |
| Product Group | Cable Ties with Ball-Lock and Coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Cable Tie with Ball-Lock and Coating 521x4.6 mm black |
| Tie Closure | ball bearing lock |
| Type | MBT20SFC |
| Variant | Not Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
| Country of Origin | GB |
| Customs Number | 73269098 |
| GTIN-13 / EAN | 5022660312267 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.389m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 0.530001kg |
| Packaging 1 - Width (m) | 0.09m |
| Packaging 3 - Height (m) | 0.14m |
| Packaging 3 - Length (m) | 0.41m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0184m³ |
| Packaging 3 - Weight (kg) | 11.1kg |
| Packaging 3 - Width (m) | 0.32m |
| Packaging 4 - Height (m) | 1.124m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 56000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.079m³ |
| Packaging 4 - Weight (kg) | 331.8kg |
| Packaging 4 - Width (m) | 0.8m |
