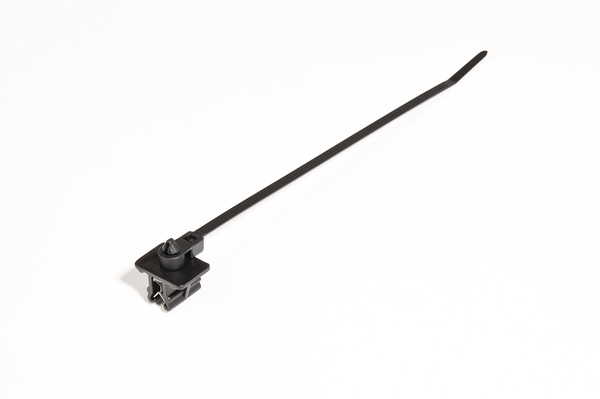

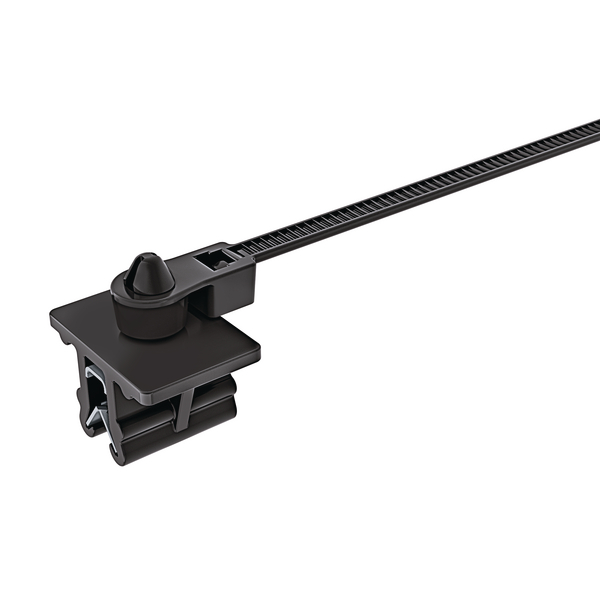

Fixing tie for edge, inside serrated, ∅1.5-32.0mm, black, 500pcs.
Art.-No. 156-00049
| CBT30MR-PA66HS/POM-BK
|
Details
- Pre-assembled 2-piece fixing tie with EdgeClip
- Easy to assemble by hand
- Cable tie head can be moved after bundling
- For edges of 1 – 2.5 mm or 1 – 3 mm

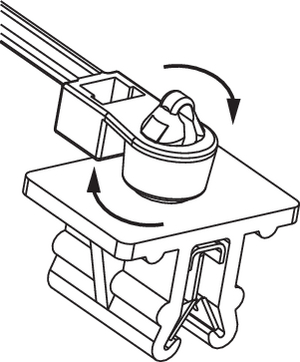

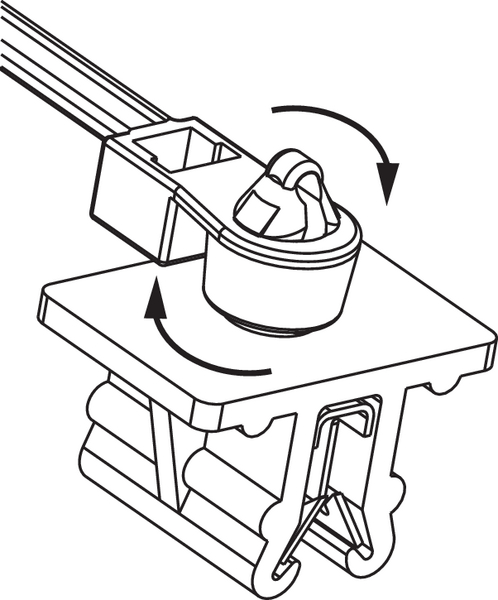

- Can be rotated to the desired position during mounting
More products in this product group:

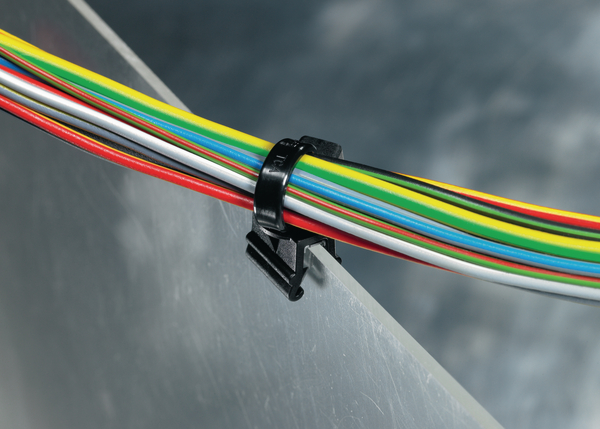

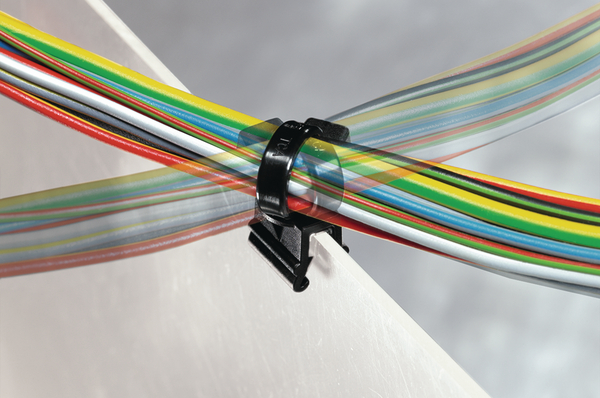

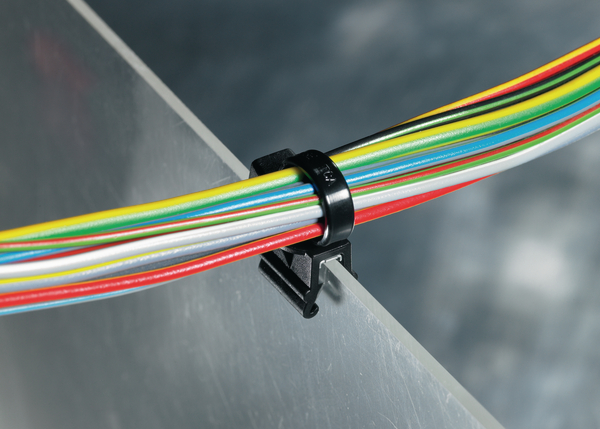

| Application | These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or or where adhesives will fail due to temperature problems. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |

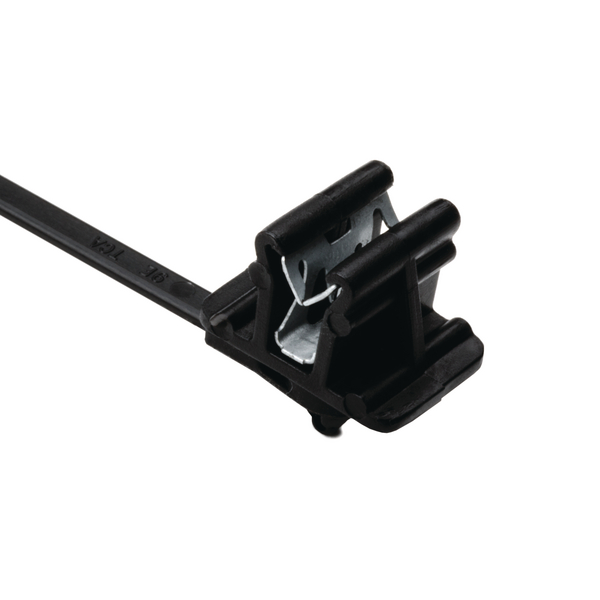

| Description | These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip. |
| Fixation Method | Edge Clip |
| Foot Part | Polyacetal (POM) |
| Identification Plate Position | none |
| Key product features | rotatable |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM) |
| PART DESCRIPTION | CBT30MR-PA66HS/POM-BK |

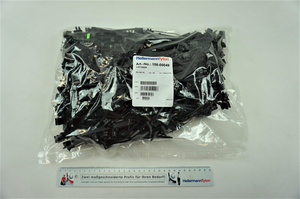

| Pack Cont. | 500pcs. |
| Package Content packed in | carton |
| Product Family | CBT30MR for max. bundle diameter 32.0 mm, rotatable 360 ° |
| Product Group | 2-Piece Fixing Ties for Edges, twistable |
| Short Description | 2-Piece fixing tie 100x2.45 mm, for edges, PA66HS/PA66HIRHS, black |
| Type | CBT30MR |
| Variant | Inside Serrated |
| Wings on clip base (Yes / No) | NO |
| Bundle Diameter max (metric) | 32.0mm |
| Bundle ∅ | 1.5-32.0mm |
| Bundle ∅ min. | 1.5mm |
| Height (H) | 1.2mm |

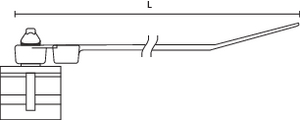

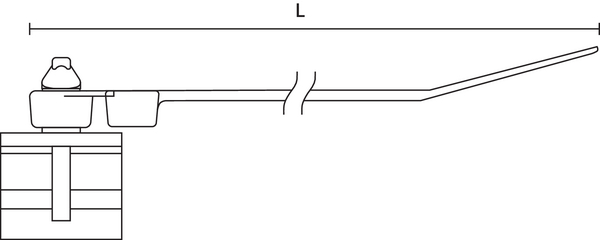

| Length (L) | 160mm |
| Length (L2) | 13.5mm |
| Min.Tensile Strength | 135N |
| Panel Thickness max. | 1.0 - 3.0mm |
| Strap Width max. (G) | 0.14" |
| Strap Width max. (G) | 3.5mm |
| Weight/Unit | 0.002729kg |
| Width (W) | 3.5mm |
| Width (W2) | 19.0mm |
| for Panel Thickness min - max | 1 - 2.5 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +90 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026254296 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.26m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00575m³ |
| Packaging 1 - Weight (kg) | 1.386493kg |
| Packaging 1 - Width (m) | 0.34m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.68493kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 197.22kg |
| Packaging 4 - Width (m) | 0.8m |
