24/11/2024

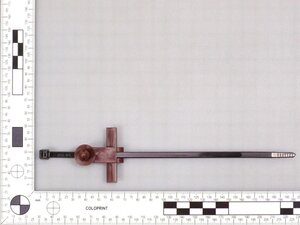

Fixing tie for hole (oval), inside serrated, ∅1.5-45.0mm, black/brown, 100pcs.
Art.-No. 156-05314 | COW20T50R-PA66-BK/BN |  Details

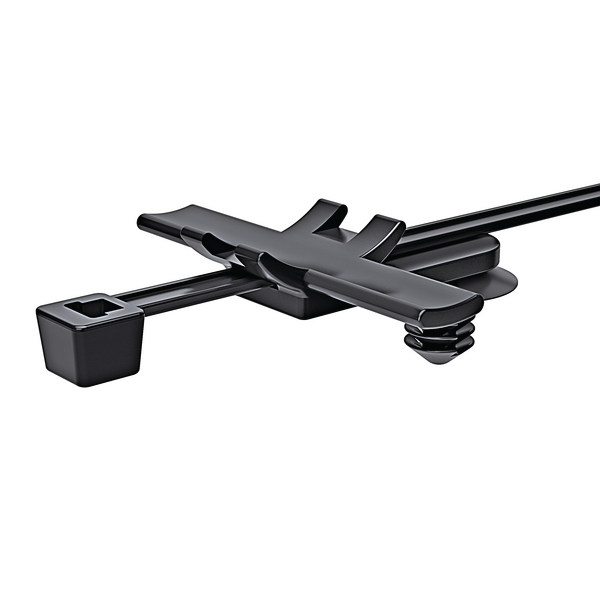

COW Clip with Cable Tie Assembly

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • DOP versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6 (PA66)
    Colour Black (BK), Brown (BN)
    Fixation Method Fir Tree
    Foot Part Polyamide 6.6 (PA66)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION COW20T50R-PA66-BK/BN
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family 2-Pieces Fixing Ties with Fir Tree, with Disc, for Oval Holes
    Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc
    Tie Closure plastic pawl
    Type COW20T50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Bundling Bar Length 42.0mm
    Disc ∅ 16.0mm
    Height (H) 1.2mm
    Height (H2) 6.6mm
    Length (L) 202mm
    Length (L2) 20.0mm
    Min.Tensile Strength 225N
    Offset Length 20.0mm
    Panel Thickness max. 0.8 - 4.5mm
    Weight/Unit 0.003371kg
    Width (W) 4.6mm
    Width (W2) 42.0mm
    for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.3 - 7.0 mm
    for Panel Thickness min - max - 0
    for Panel Thickness min - max 0.8 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    Operating Temperature Foot Part (Metric) -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026238982
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.45m
    Packaging 1 - Qty 500

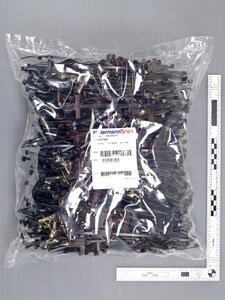

    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02106m³
    Packaging 1 - Weight (kg) 1.714635kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.10781kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 154.284kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
