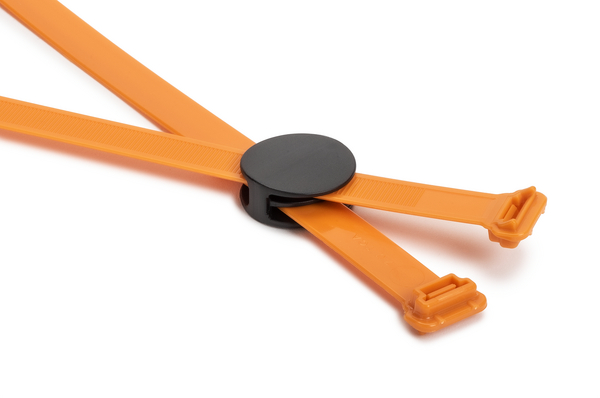

Fixing tie, inside serrated, ∅9.525-104.1mm, black/orange, 500pcs.
Art.-No. 156-04064 | DUALWSIASSY-PA66HIRHS/PA66HIRHSUV-BK/OG |  Details

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK), Orange (OG), High Voltage (HV)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DUALWSIASSY-PA66HIRHS/PA66HIRHSUV-BK/OG
    Pack Cont. 500pcs.
    Package Content packed in carton
    Product Family twistable up to 90°
    Product Group 2-piece fixing ties for parallel separation
    Tie Closure plastic pawl
    Type DUALWSIASSY
    Variant Inside Serrated
    Bundle Diameter max (metric) 104.1mm
    Bundle ∅ 9.525-104.1mm
    Bundle ∅ min. 9.525mm
    Height (H) 10.86mm
    Length (L) 383.0mm
    Min.Tensile Strength 535N
    Width (W) 27.0mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C, -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026665498
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Width (m) 0.39528749999999997m
    Packaging 4 - Qty 15000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
