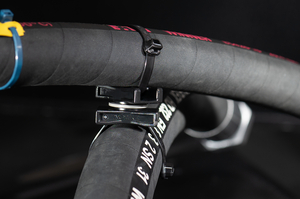

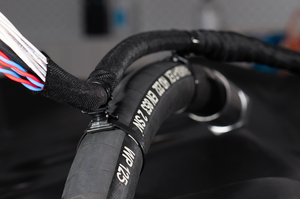

Fixing tie for cable bundles, inside serrated, ∅10.0-105.0mm, black, 250pcs.
Art.-No. 156-00275 | T120RCOUPLER-PA66HIRHS-BK |  Details

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)

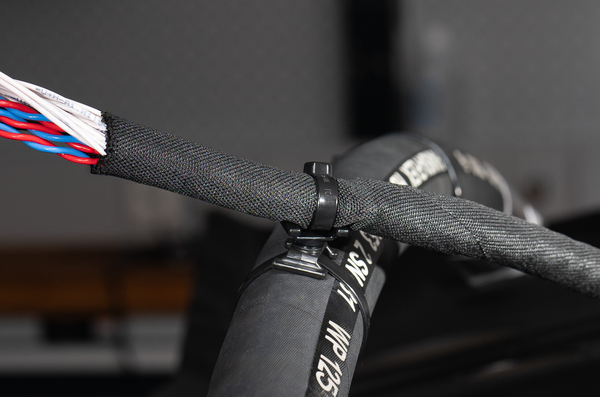

    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T120RCOUPLER-PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Family twistable up to 90°
    Product Group 2-piece fixing ties for parallel separation
    Short Description 2-Piece fixing tie 390.0x7.6 mm, for parallel separation, PA66HIRHS, black
    Tie Closure plastic pawl
    Type T120RCOUPLER
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 10.0-105.0mm
    Bundle ∅ min. 10.0mm
    Length (L) 390mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.3
    Strap Width max. (G) 7.6mm
    Weight/Unit 0.012336kg
    Width (W) 7.6mm
    ∅ max. 1. loop 100.0mm
    ∅ max. 2. loops 100.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026289557
    Packaging 1 - Height (m) 1.065m
    Packaging 1 - Length (m) 0.345m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.18371m³
    Packaging 1 - Weight (kg) 3.108kg
    Packaging 1 - Width (m) 0.5m
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.6m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.06m³
    Packaging 3 - Weight (kg) 13.182kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 231.912kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
