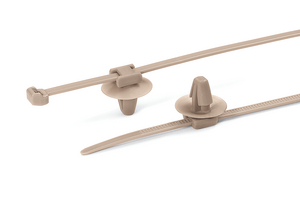

Fixing tie for hole (round), outside serrated, ∅4.0-35.0mm, beige, 500pcs.
Art.-No. 156-01090 | PT2AP1SFT6.5-PEEK-BGE |  Details

2-piece fixing element (PEEK) with arrow head for round holes and high temperature applications.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Features Material PEEK: -55 °C to +240 °C operating temperature
    • Excellent resistance against chemicals and gamma radiation
    Show more
    Add to watchlist

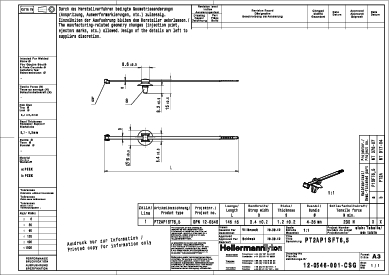

    Downloads CAD-Download Datasheet
    Application The ties with fixing element P1SFT6,5 or P2SFT6,5 are ideal when the requirement for temperature or chemical resistance is very high. They are used for cable harnesses in the automotive industry.
    Colour Beige (BGE)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyetheretherketone (PEEK)
    PART DESCRIPTION PT2AP1SFT6.5-PEEK-BGE
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family For Temperatures up to +240 °C
    Product Group 2-piece fixing ties with arrowhead, with disc
    Short Description 2-Piece fixing tie 145x3.4 mm, with arrowhead, PEEK, beige
    Tie Closure plastic pawl
    Type PT2AP1SFT6.5
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 4.0-35.0mm
    Bundle ∅ min. 4.0mm
    Disc ∅ 16.0mm
    Length (L) 145.0mm
    Min.Tensile Strength 230N
    Panel Thickness max. 0.7 – 1.3mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001226kg
    Width (W) 3.4mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 1.3 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0 (3 mm)
    Hazardous Goods No
    Operating Temperature -55 °C to +240 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026462837
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.45m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01914m³
    Packaging 1 - Weight (kg) 0.642135kg
    Packaging 1 - Width (m) 0.405m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 6.65308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 100.824kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
