Fixing tie for screw fixation, inside serrated, ∅1.0-20.0mm, natural, 100pcs.
Art.-No. 113-00041 | T18MR-PA66-NA |  Details

Screw mount style creates low insertion and high extraction force.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Package size
    Add to watchlist
    Downloads Datasheet

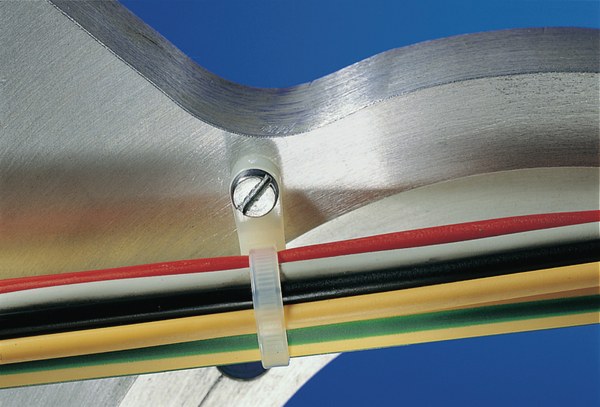

    Application The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added. Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites.
    Colour Natural (NA)
    Fixation Method Fixing hole
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M3 Screw
    PART DESCRIPTION T18MR-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18MR
    Variant Inside Serrated
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 1.0-20.0mm
    Bundle ∅ min. 1.0mm
    Cable Tie Head Height (metric) 4.2mm
    Cable Tie Head Length (metric) 14mm
    Cable Tie Head Width (metric) 5.2mm
    Height (H) 4.2mm
    Length (L) 111mm
    Min.Tensile Strength 80N
    Thickness (T) 1.1mm
    Width (W) 2.5mm
    for Hole ∅ (FH) 3.1 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E64962
    Country of Origin JP
    GTIN-13 / EAN 4944387201000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
