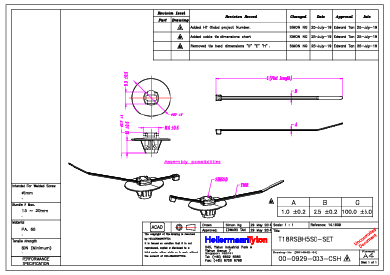

Fixing tie for stud, inside serrated, ∅1.5-18.0mm, black, 4000Set
Art.-No. 156-00249 | T18RSBH5SDSET-PA66HS-BK |  Details

Versatile design allows cable routing above, perpendicular or parallel to stud.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Content 4000 T18R + 4000 SBH5SD
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T18RSBH5SDSET-PA66HS-BK
    Pack Cont. 4000Set
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18RSBH5SDSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 18.0mm
    Bundle ∅ 1.5-18.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 100.0mm
    Min.Tensile Strength 80N
    Stud ∅ 5.0 mm
    Weight/Unit 0.00198kg
    Width (W) 2.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026269702
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.05kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 202.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
