23/12/2024

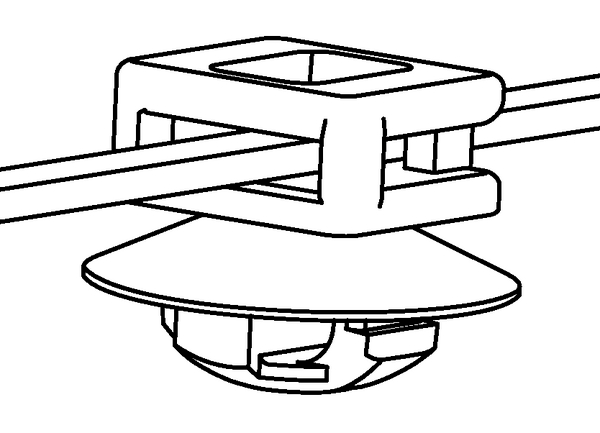

Fixing tie for hole (round), ∅36.0mm, natural/black, 500pcs.
Art.-No. 156-02781 | T30R-KSFT9-SQ-PA66-NA/BK |  Details

Being a two-piece assembly allows the tie head to be located in the most convenient position.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
    Colour Natural (NA), Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T30R-KSFT9-SQ-PA66-NA/BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family 2-piece fixing ties with arrowhead, with disc, for round holes
    Product Group 2-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30R-KSFT9-SQ
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ 36.0mm
    Disc ∅ 16.0mm
    Min.Tensile Strength 135N
    Panel Thickness max. 0.7 - 1.0mm
    Weight/Unit 0.00138kg
    for Hole ∅ (FH) 9.0 x 9.0 mm (square)
    for Panel Thickness min - max 0.7 - 1 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026630700
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.690001kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 6.340008kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 147.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
