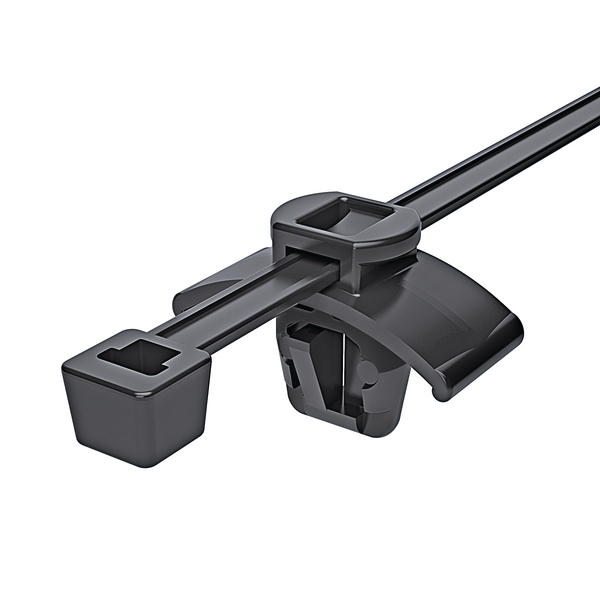

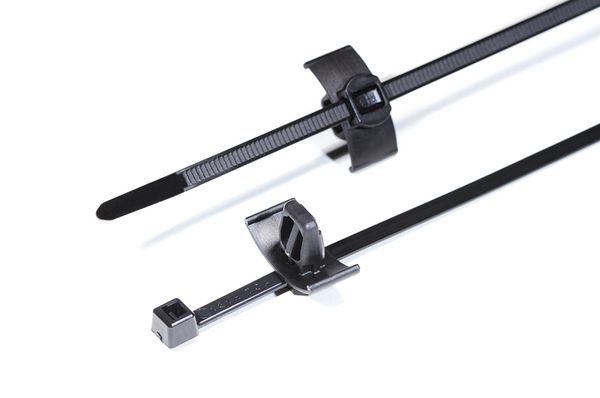

Fixing tie for hole (oval), inside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 150-37591 | T50RFT6OVAL-PA66HS/PA66HIRHS-BK |  Details

T50RFT6OVAL for oval holes 6.3 x 12.2 mm.

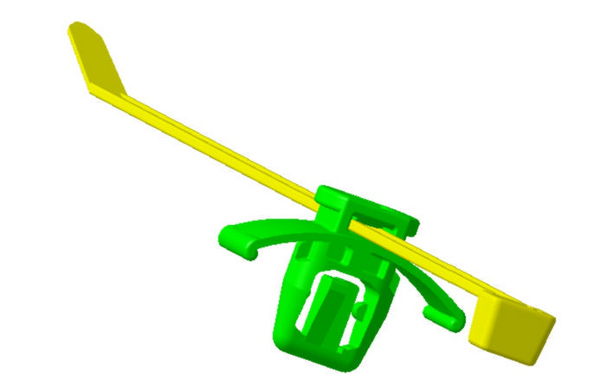

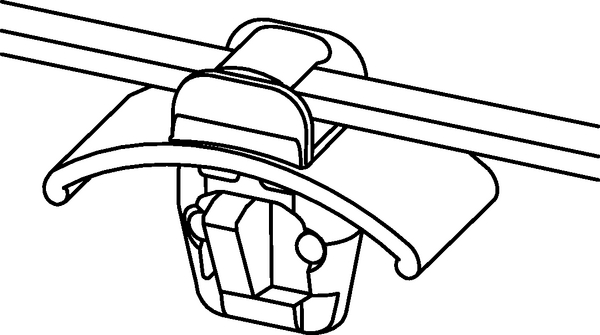

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RFT6OVAL-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.

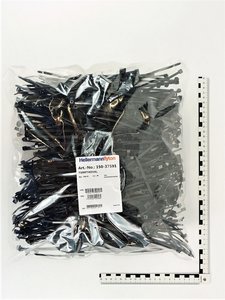

    Package Content packed in bag
    Product Family 2-piece fixing ties with arrowhead, with disc, for round holes
    Product Group 2-piece fixing ties with arrowhead, with disc
    Short Description Fixing Tie 202x4.6 mm, 2-piece, fir tree, heat stabilised, high impact modified, black
    Tie Closure plastic pawl
    Type T50RFT6OVAL
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm

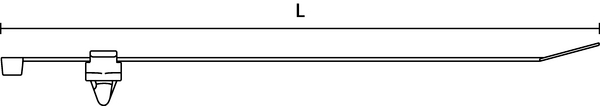

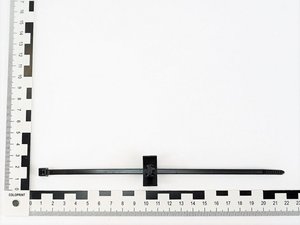

    Length (L) 202mm
    Min.Tensile Strength 222N
    Weight/Unit 0.002589kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 x 12.2 mm
    for Panel Thickness min - max 0.6 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026120584
    Packaging 1 - Height (m) 0.135m
    Packaging 1 - Length (m) 0.34m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01469m³
    Packaging 1 - Weight (kg) 1.323635kg
    Packaging 1 - Width (m) 0.32m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.76181kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 126.132kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
