Fixing tie for hole (round), inside serrated, ∅5-34mm, black, 500pcs.
Art.-No. 156-01624 | T30RFT5LG-PA66-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6 (PA66)
    Colour Black (BK)

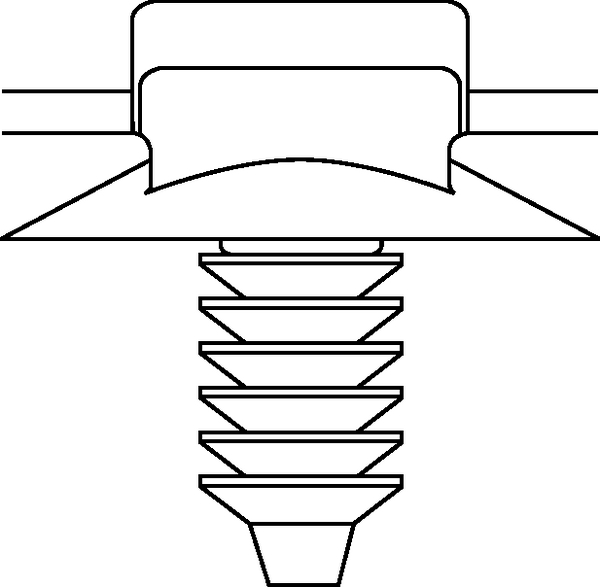

    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T30RFT5LG-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT5
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type T30RFT5LG
    Bundle Diameter max (metric) 34mm
    Bundle ∅ 5-34mm
    Bundle ∅ min. 5mm
    Disc ∅ 11.6mm
    Height (H) 1.1mm
    Length (L) 150mm
    Min.Tensile Strength 135N
    Thickness (T) 1.1mm
    Weight/Unit 0.0011kg
    Width (W) 3.6mm
    for Hole ∅ (FH) 4.7 - 5.5 mm
    for Panel Thickness min - max 0.7 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin KR
    Customs Number 39269097
    GTIN-13 / EAN 4031026564364
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.550001kg
    Packaging 3 - Height (m) 0.205m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Qty 5000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.044m³
    Packaging 3 - Weight (kg) 6.0kg
    Packaging 3 - Width (m) 0.375m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 141.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
