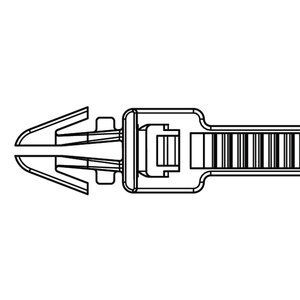

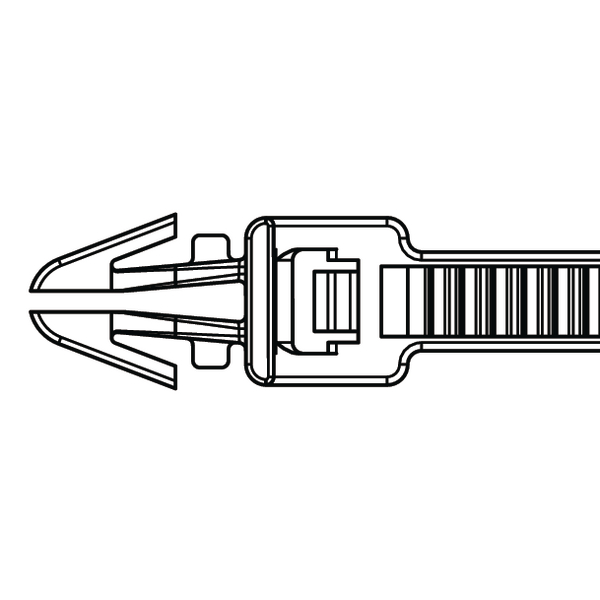

Fixing tie for hole (round), inside serrated, ∅1.6-31.0mm, natural, 1000pcs.
Art.-No. 126-00704 | T30RSF(U)-PA66-NA |  Details

The arrowhead design of this push mount inserts easily and locks securely in place.

    • Easy to assemble without the need for a tool
    • Fixing tie with arrowhead without wings
    • Arrowhead simply locks into place
    • Cable tie head always situated in defined position
    Package size
    Add to watchlist
    Downloads Datasheet
    Application The arrowhead designs allows these fixing ties to be used in areas with limited space.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T30RSF(U)-PA66-NA
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family T30RSF(U) for max. bundle diameter 31.0 mm
    Product Group 1-Piece Fixing Ties with Arrowhead
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RSF(U)
    Variant Inside Serrated
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 1.6-31.0mm
    Bundle ∅ min. 1.6mm
    Height (H) 5.70mm
    Length (L) 160.02mm
    Min.Tensile Strength 135N
    Panel Thickness max. 0.9 - 2.4mm
    Thickness (T) 1.2mm
    Weight/Unit 0.000804kg
    Width (W) 3.6mm
    for Hole ∅ (FH) 4.7 - 5.6 mm
    for Panel Thickness min - max 0.9 - 2.4 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026425405
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00389m³
    Packaging 1 - Weight (kg) 0.804kg
    Packaging 1 - Width (m) 0.18m
    Packaging 3 - Height (m) 0.215m
    Packaging 3 - Length (m) 0.51m
    Packaging 3 - Qty 5000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0351m³
    Packaging 3 - Weight (kg) 4.52kg
    Packaging 3 - Width (m) 0.32m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 111.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
