Fixing tie with pipe/tube holder, inside serrated, ∅45.0mm, black, 500Set
Art.-No. 156-00989 | T50RIAHC3TSET-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist

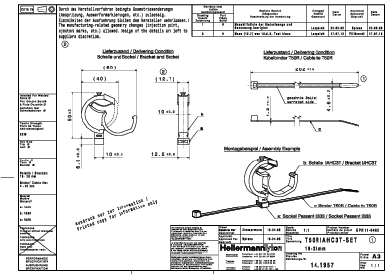

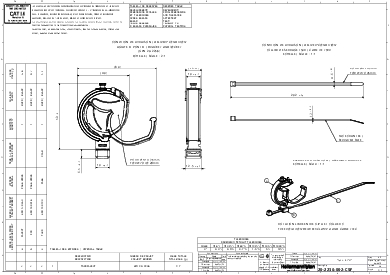

    Downloads Datasheet
    Application These 2-piece ties are a quick and easy method of fixing and bundling cables. Originally developed for the automotive industry.
    Colour Black (BK)
    Content 500 T50R + 500 IAHC3T
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RIAHC3TSET-PA66HS/PA66HIRHS-BK
    Pack Cont. 500Set
    Package Content packed in bag
    Product Family IAHC-Series
    Product Group 2-Piece Fixing Ties with Automatic Harness Clip, connectable and twistable 360°
    Releasable Closure (Yes/No) No
    Short Description 2 piece fixing tie with T50R and fixing element 360 degrees turnable
    Tie Closure plastic pawl
    Type T50RIAHC3TSET
    Variant Inside Serrated
    Attach to Ø 19.0 - 28.0 mm
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026450902
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
