24/02/2025

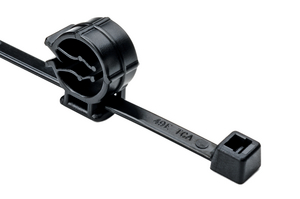

Fixing tie with pipe/tube holder, inside serrated, ⌀4-45mm, grey, 500pcs.
Art.-No. 156-01736 | T50ROC1-SET-PA46-GY |  Details

    Add to watchlist
    Downloads
    Colour Grey (GY)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50ROC1-SET-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROC1-SET
    Variant Inside Serrated
    Bundle ⌀ 4-45mm
    Bundle ⌀ min. 4mm
    Bundle Diameter max (metric) 45mm
    Weight/Unit 0.00277kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026583389
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.73kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 255.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
