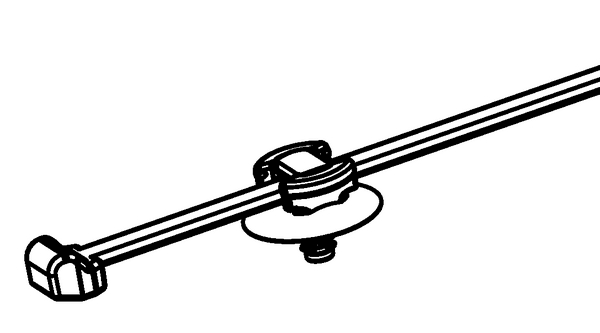

Fixing tie for hole (round), ∅45.0mm, black, 1000pcs.
Art.-No. 156-02507 | T50ROS-ATS-FT4-SET-PA66HS/PA66HIRHS-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION T50ROS-ATS-FT4-SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT4
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type T50ROS-ATS-FT4-SET
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.0-3.0mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026609508
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
