Fixing tie for hole (oval), ∅45.0mm, black, 500pcs.
Art.-No. 156-02991 | T50ROSATSFTOVAL25-PA66HS/PA66HIRHSUV-BK |  Details

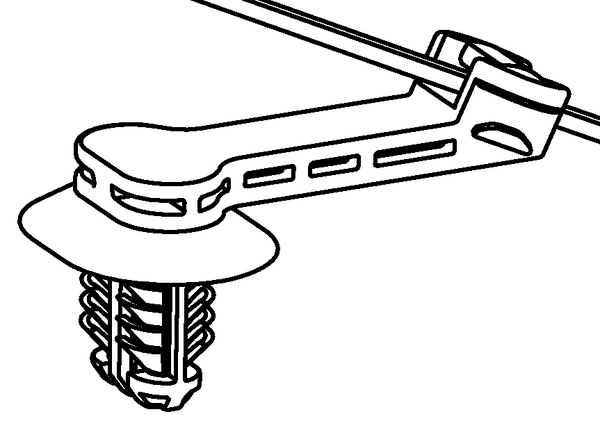

Two piece fixing tie T50ROSFTOVAL-B with fir tree for oval holes.

    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSATSFTOVAL25-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 2-piece fixing ties with fir tree, with disc
    Tie Closure plastic pawl
    Type T50ROSATSFTOVAL25
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6-6.75mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026637969
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
