Fixing tie for edge, outside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-02700 | T50ROSEC6-8-PA66HS/PA66HIRHS-BK |  Details

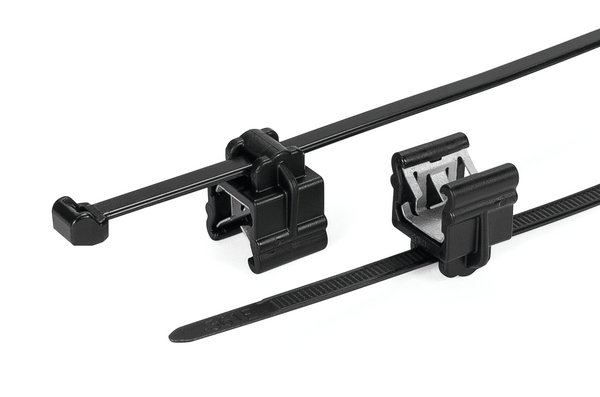

Fixing Tie with EdgeClip for thick edges.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • For minimum bundle diameters of 1 mm
    • For edges of 6 - 8 mm
    Add to watchlist
    Downloads Datasheet
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Edge Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSEC6-8-PA66HS/PA66HIRHS-BK

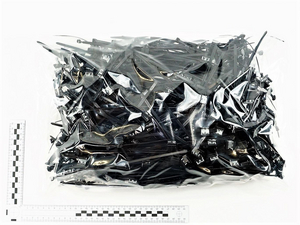

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 6.0 - 8.0 mm, top fixing
    Product Group 2-piece fixing ties for edges
    Short Description Edge Clip (6-8 mm), cable tie, 2 pieces, top fixing, PA66HS+PA66HIRHS, black
    Type T50ROSEC6-8
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.0-45.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.3mm
    Height (H2) 19.4mm
    Length (L) 200.0mm
    Length (L2) 13.5mm
    Min.Tensile Strength 225N
    Panel Thickness max. 6.0 - 8.0mm
    Weight/Unit 0.003798kg
    Width (W) 4.6mm
    Width (W2) 17.8mm
    for Panel Thickness min - max 6 - 8 mm
    for Panel Thickness min - max 0.2 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026623078
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03842m³
    Packaging 1 - Weight (kg) 1.942597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.418179kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 42000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 194.052kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
