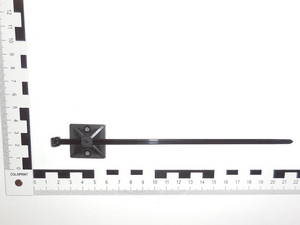

Fixing tie for adhesive use, outside serrated, ∅1.6-50.0mm, black, 500pcs.
Art.-No. 150-10400 | T50ROSMB4A-PA66HS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Self-Adhesive
    Foot Part Polyamide 6.6 (PA66)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50ROSMB4A-PA66HS-BK

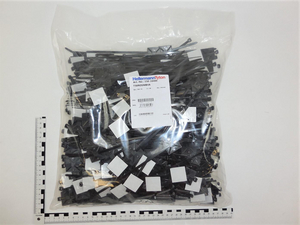

    Pack Cont. 500pcs.
    Package Content packed in bag
    Short Description Screw Fixing Cable Tie Mount self adhesive 20 x 20 black
    Tie Closure plastic pawl
    Type T50ROSMB4A
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.6-50.0mm
    Bundle ∅ min. 1.6mm
    Height (H) 1.3mm
    Height (H2) 4.7mm
    Length (L) 200mm
    Length (L2) 28.0mm
    Min.Tensile Strength 225N
    Thickness of Adhesive (TA) nom. 0.85
    Weight/Unit 0.0036kg
    Width (W) 4.6mm
    Width (W2) 28.0mm
    Adhesive Acrylic
    Adhesive Operating Temperature -35 °C to +90 °C
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Hazardous Goods No
    Operating Temperature -40 °C to +60 °C
    Operating Temperature Foot Part (Metric) -40 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026218526
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01333m³
    Packaging 1 - Weight (kg) 1.829135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 15.45308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 206.424kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
