Fixing tie for stud, outside serrated, ∅1.5-45.0mm, black, 200pcs.
Art.-No. 156-00743 | T50ROSSB5-PA66/POM-BK |  Details

Cable ties with various weld stud fixing methods.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyacetal (POM)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66), Polyacetal (POM)
    PART DESCRIPTION T50ROSSB5-PA66/POM-BK
    Pack Cont. 200pcs.
    Package Content packed in bag
    Product Family SB5 Series
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSSB5
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.3mm
    Height (H2) 10mm

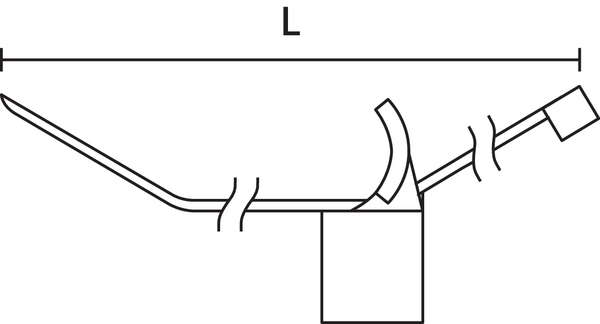

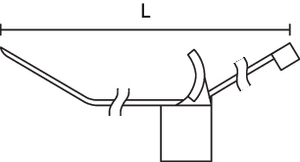

    Length (L) 200mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Width (W2) 21.8mm
    Flammability UL 94 V2, UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176001702
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
