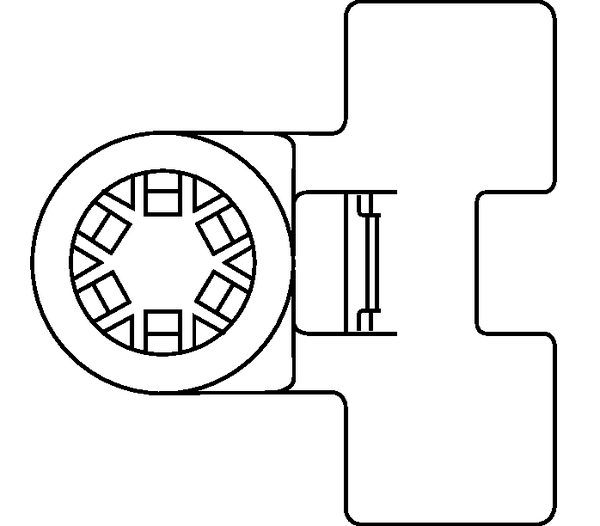

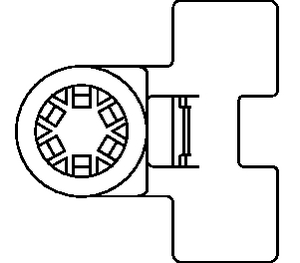

Fixing tie for stud, outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-00686 | T50ROSSBS5-PA66HS/PA66HIRHS-BK |  Details

Cable ties with various weld stud fixing methods.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSSBS5-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family SBS5 Series
    Product Group 2-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSSBS5
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.3mm
    Height (H2) 15mm
    Length (L) 200mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ M5
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Width (W2) 20.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026426020
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
