22/12/2024

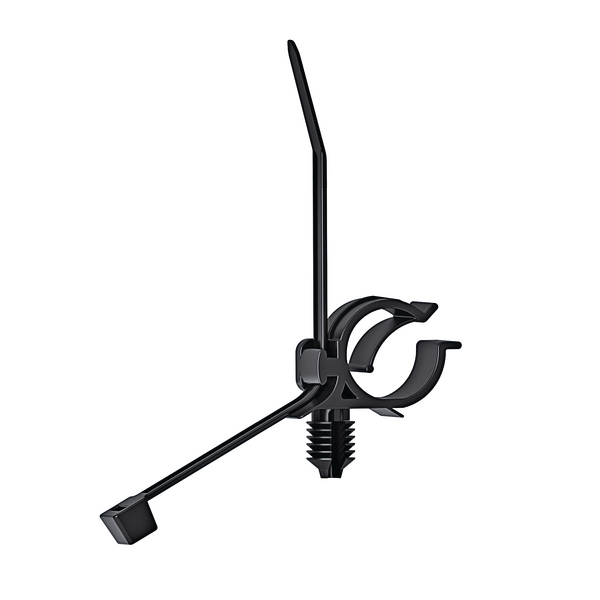

Fixing tie for hole (round)/with pipe/tube holder, ∅1.0-30.0mm, black, 500pcs.
Art.-No. 156-00253 | T50SCTCFT6-PA66HS/PA66HIRHS-BK |  Details

T50SCTCFT6.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Convoluted Tube Clips
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SCTCFT6-PA66HS/PA66HIRHS-BK

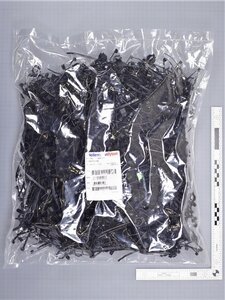

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family with pipe clip and fir tree
    Product Group 2-piece fixing ties
    Type T50SCTCFT6
    Attach to Ø 11.0 - 15.0 mm
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.0-30.0mm
    Bundle ∅ min. 1.0mm

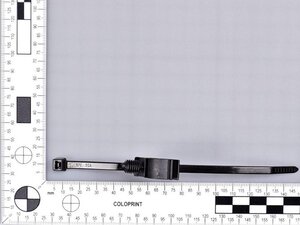

    Length (L) 150.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002784kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026269283
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.45m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0153m³
    Packaging 1 - Weight (kg) 1.435597kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.433582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 134.232kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
