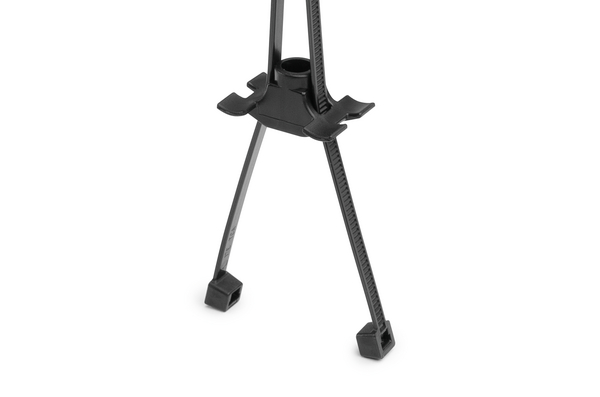

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 250pcs.
Art.-No. 156-00757 | T50SDSBS5-PA66HS/PA66HIRHS-BK |  Details

Fixing tie for stud fixation and for multipile routing.

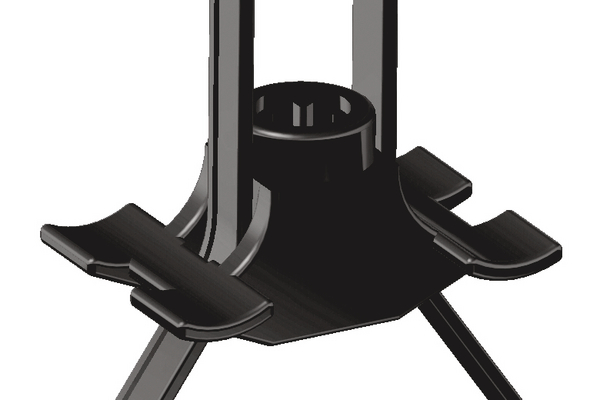

    • Pre-assembled 2-piece fixing tie with stud retainer
    • For parallel routing of cables, hoses or harnesses
    • Cable tie head can be moved after bundling
    • Easy to install without the need for a tool
    • For 5 mm studs or 5 mm ISO threaded studs
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Widely used for securing cables pipes and hoses in the automotive and truck building industries, the mounting base is simply pushed onto a 5 mm diameter stud or bolt.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SDSBS5-PA66HS/PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Family 2-piece fixing ties for weld studs, for parallel routing
    Product Group 2-piece fixing ties for weld studs, for parallel routing
    Releasable Closure (Yes/No) No
    Type T50SDSBS5
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 15mm
    Length (L) 150mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 30.0mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026427188
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
