Fixing tie for cable bundles, outside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-03119 | T50SOSASVCD-SO17-PA66HIRHS-BK |  Details

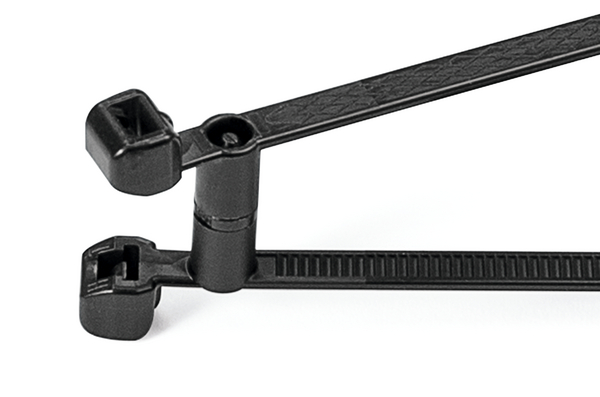

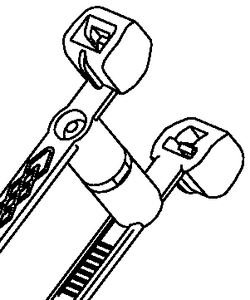

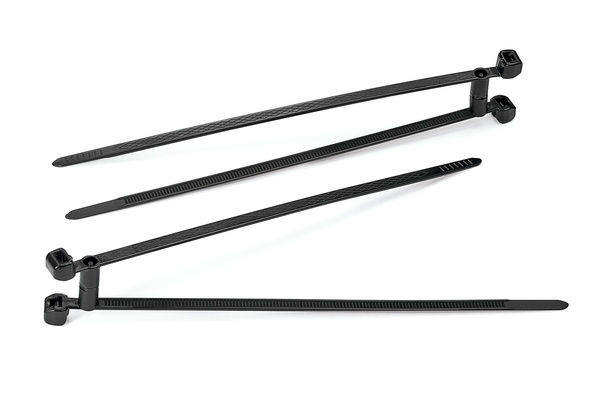

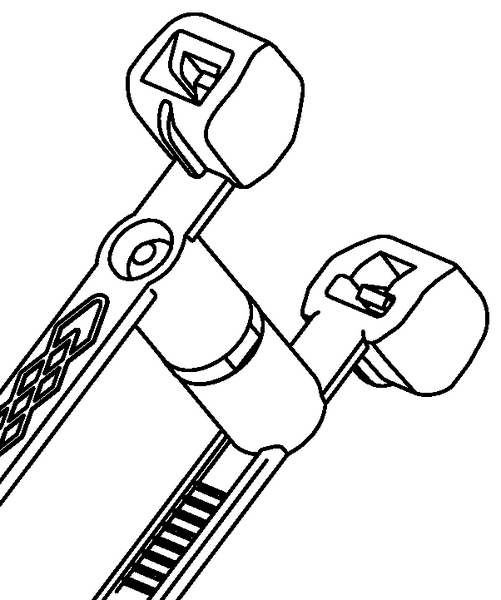

Our T50SOSASVCD-SO17 is a 360° twistable Fixing Tie with

    • Pre-assembled 2-piece fixing tie
    • Cable tie with AntiSlip engraving
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 360° even after installation
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 360 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Fixation Method 2 piece
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing, rotatable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSASVCD-SO17-PA66HIRHS-BK
    Pack Cont. 500pcs.

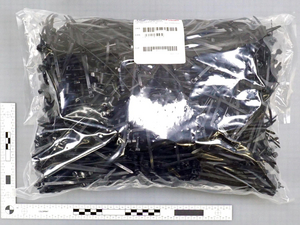

    Package Content packed in bag
    Product Family twistable up to 360°
    Product Group 2-piece fixing ties for parallel separation
    Tie Closure plastic pawl
    Type T50SOSASVCD-SO17
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Cable Tie Head Height (metric) 6.5mm
    Cable Tie Head Width (metric) 8.0mm

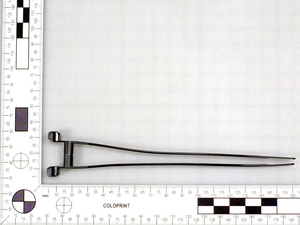

    Length (L) 155.0mm
    Min.Tensile Strength 200N
    Offset Length 17.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.002642kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026651439
    Packaging 1 - Height (m) 0.115m
    Packaging 1 - Length (m) 0.545m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02946m³
    Packaging 1 - Weight (kg) 1.364597kg
    Packaging 1 - Width (m) 0.47m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
