Fixing tie for stud, inside serrated, ∅2.0-30.0mm, black, 500pcs.
Art.-No. 156-03026 | T50SSB5-6-PA66HIRHS/PA66HS-BK |  Details

The

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • "Soft-push" design for tool-free installation
    • for welded studs M5 / M6 / T5 / T6
    • SB5-6 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SSB5-6-PA66HIRHS/PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50SSB5-6
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 2.0-30.0mm
    Bundle ∅ min. 2.0mm

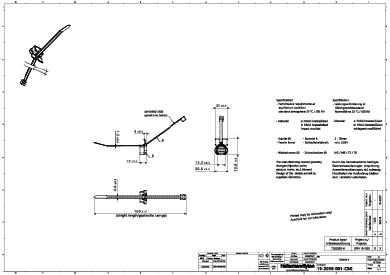

    Height (H2) 10.0mm
    Length (L) 160.0mm
    Length (L2) 23.8mm
    Min.Tensile Strength 225N
    Stud ∅ T5, M5, T6, M6
    Thickness (T) 1.2mm
    Weight/Unit 0.002289kg
    Width (W) 4.6mm
    Width (W2) 20.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026645490
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01778m³
    Packaging 1 - Weight (kg) 1.173635kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.86181kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 115.332kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
