22/12/2024

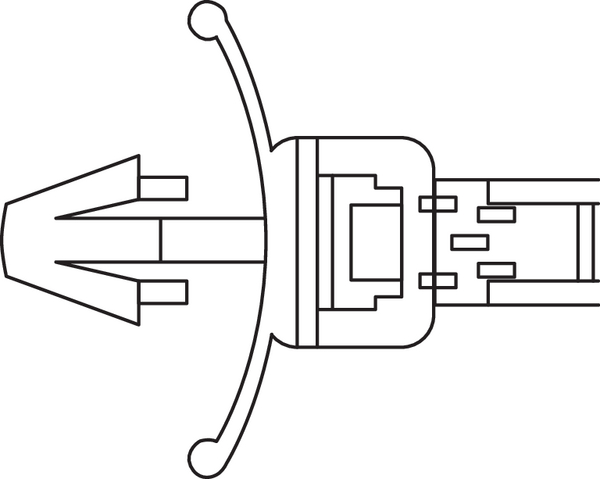

Fixing tie for hole (round), ∅35.0mm, black, 500pcs.
Art.-No. 126-00263 | T50SWPM4.7PT0.7-1.6-PA66HS-BK |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Add to watchlist
    Downloads Datasheet
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SWPM4.7PT0.7-1.6-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SWPM4.7PT0.7-1.6
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 35.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 – 1.6mm
    Width (W) 4.8mm
    for Hole ∅ (FH) 4.6 - 4.8 mm
    for Panel Thickness min - max 0.7 - 1.6 mm
    for Panel Thickness min - max 0 - 0.1 "
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL-File Number E193818
    Country of Origin CN
    GTIN-13 / EAN 4031026534596
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
