23/12/2024

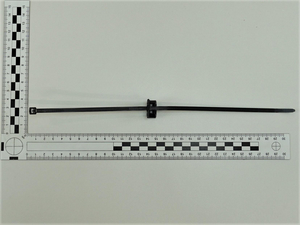

Fixing tie for stud, inside serrated, ∅2.0-81.0mm, black, 500pcs.
Art.-No. 156-01020 | T80ISB5-PA66HS/PA66HIRHS-BK |  Details

SB5

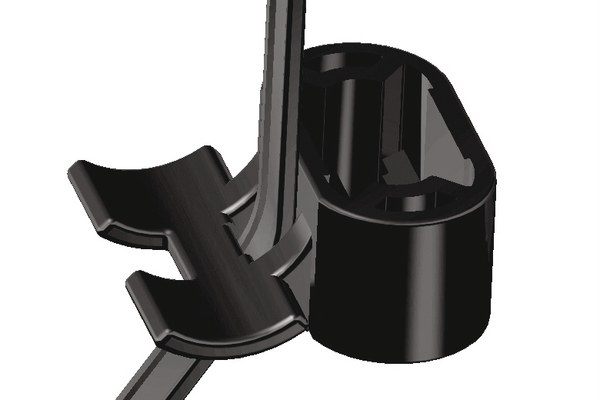

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T80ISB5-PA66HS/PA66HIRHS-BK

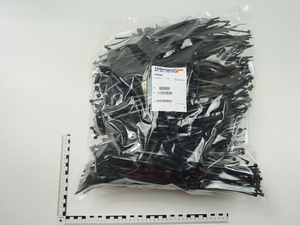

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Tie Closure plastic pawl
    Type T80ISB5
    Variant Inside Serrated
    Bundle Diameter max (metric) 81.0mm
    Bundle ∅ 2.0-81.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 10mm
    Length (L) 300mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 355N
    Stud ∅ 5.0 mm, 6.0 mm, M5, M6
    Weight/Unit 0.003334kg
    Width (W) 4.6mm
    Width (W2) 21.8mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026455341
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02352m³
    Packaging 1 - Weight (kg) 1.688815kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 5.886445kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 18000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 91.644kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
