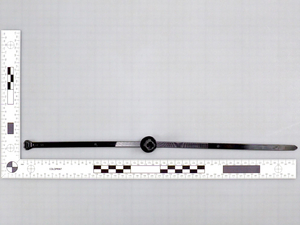

Fixing tie for hole (round), inside serrated, ∅10.0-100.0mm, black, 200pcs.
Art.-No. 156-03098
| X120RPF12T10.12or15-PA66HIRHS-BK
|
Details

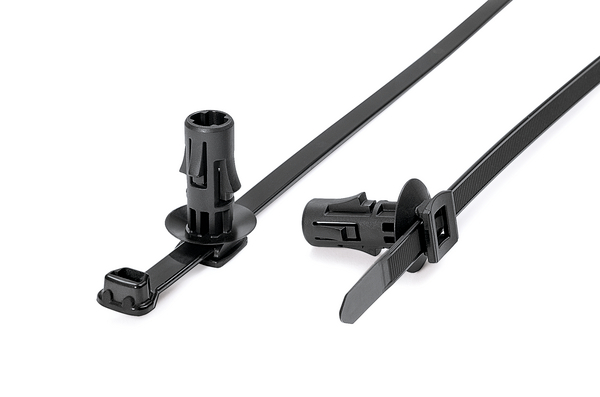

- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | X120RPF12T10.12or15-PA66HIRHS-BK |
| Pack Cont. | 200pcs. |
| Package Content packed in | bag |
| Product Family | 2-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Tie Closure | plastic pawl |
| Type | X120RPF12T10.12or15 |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 100.0mm |
| Bundle ∅ | 10.0-100.0mm |
| Bundle ∅ min. | 10.0mm |
| Cable Tie Head Height (metric) | 7.9mm |
| Cable Tie Head Width (metric) | 13.3mm |
| Disc ∅ | 22.0mm |
| Height (H) | 1.7mm |
| Height (H2) | 35.0mm |
| Min.Tensile Strength | 535N |
| Panel Thickness max. | 10.0 - 11.0 mm 12.0 - 13.0 mm 15.0 - 16.0mm |
| Strap Width max. (G) | 7.7mm |
| Thickness (T) | 1.6mm |
| Weight/Unit | 0.007074kg |
| Width (W) | 7.7mm |
| for Hole ∅ (FH) | 11.8 - 12.2 mm |
| for Panel Thickness min - max | 10 - 16 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026650098 |
| Packaging 1 - Height (m) | 0.105m |
| Packaging 1 - Length (m) | 0.55m |

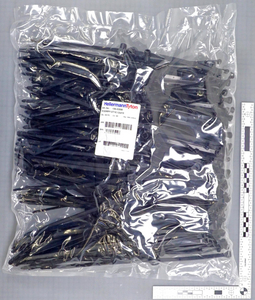

| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02714m³ |
| Packaging 1 - Weight (kg) | 1.458397kg |
| Packaging 1 - Width (m) | 0.47m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.570382kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 135.874kg |
| Packaging 4 - Width (m) | 0.8m |
