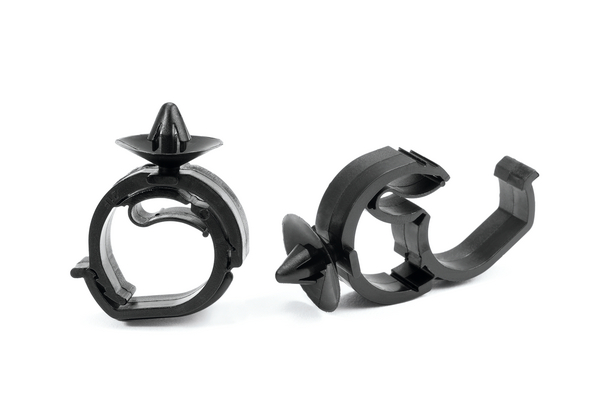

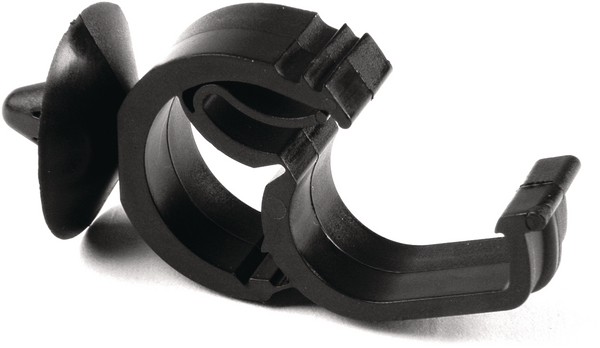

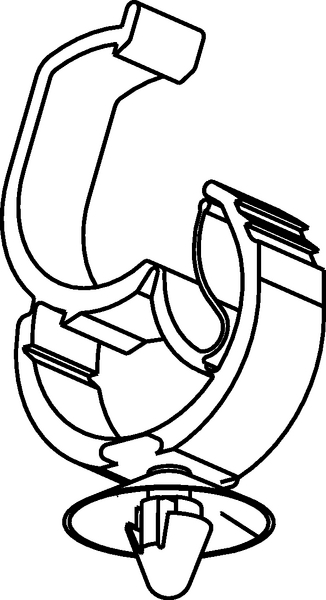

Cable clip for hole (round), ∅6.2 - 6.7 mm, Dmin=11mm, Dmax=20mm
Art.-No. 151-02881 | AHC2AH-PA66HIRHS-BK |  Details

Automatic Harness Clips offer a simple and secure method of attaching cables to panels and other surfaces.

    • Push and click closure for fixing of wires

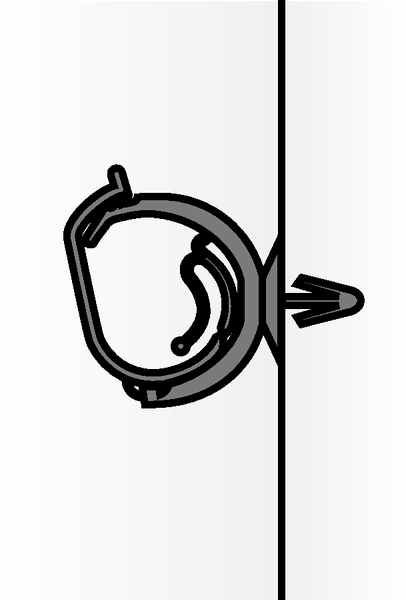

    • Clip is clicked into a specific hole
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    Add to watchlist
    Downloads Datasheet
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features for faster processing, lockable, for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC2AH-PA66HIRHS-BK
    Pack Cont. 900pcs.
    Package Content packed in carton
    Product Family AHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
    Short Description Harness clip 34x10 mm, automatic locking, high impact modified, heat stabilised, black
    Type AHC2AH
    Bundle Diameter max (metric) 20mm
    Bundle ∅ 11-20mm
    Bundle ∅ min. 11mm

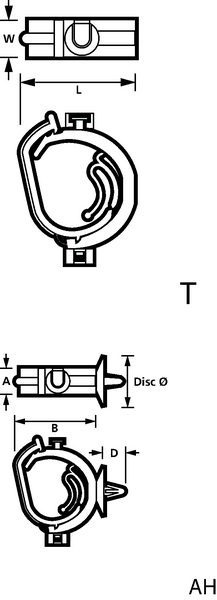

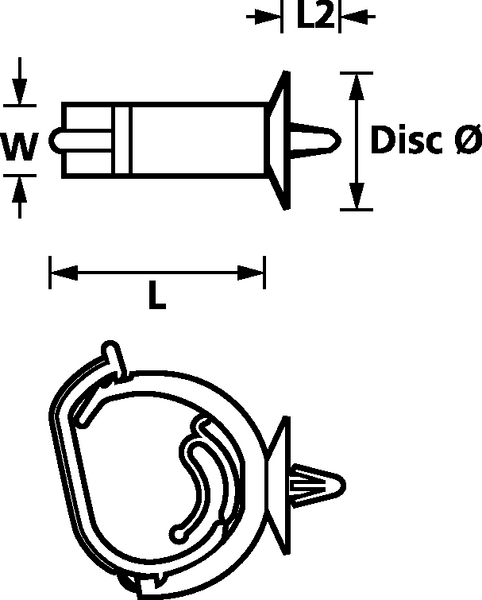

    Disc ∅ 20.0mm
    Length (L) 32.5mm
    Length (L2) 7.5mm
    Weight/Unit 0.0005kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.2 - 6.7 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026621272
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 900
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.024m³
    Packaging 3 - Weight (kg) 0.87kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 55.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
