20/12/2024

Connector clip for hole (round), black, 500pcs.
Art.-No. 151-01141 | CCFT6LG-TS-PA66HIRHS-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCFT6LG-TS-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With Fir Tree
    Product Group Connector Clips for round holes

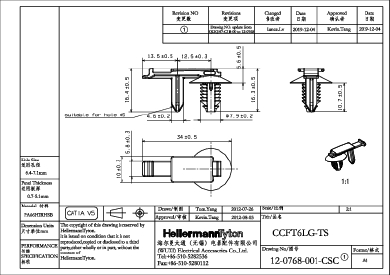

    Type CCFT6LG-TS
    Height (H) 16.4mm
    Length (L) 34.0mm
    Panel Thickness max. 0.7 - 5.1mm
    Weight/Unit 0.000916kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.4 - 7.1 mm
    for Hole ∅ (FH2) 5.0mm
    for Panel Thickness min - max 0.7 - 5.1 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026461090
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.335m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00348m³
    Packaging 1 - Weight (kg) 0.473kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 7.442kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 169.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
