19/11/2024

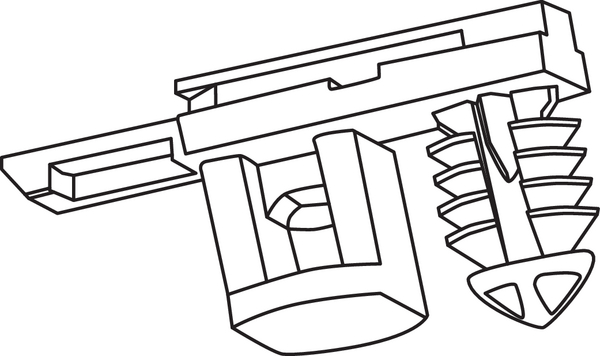

Connector clip for hole (round), grey, 500pcs.
Art.-No. 151-01294 | CCFT6TS11-PA46-GY |  Details

Connector Clips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Grey (GY)
    Fixation Method Fir Tree
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CCFT6TS11-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With Fir Tree
    Product Group Connector Clips for round holes
    Type CCFT6TS11
    Height (H) 16.5mm
    Length (L) 29.0mm
    Panel Thickness max. 0.6 - 4.0mm
    Weight/Unit 0.0002kg
    Width (W) 18.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.6 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026513492
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 100kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 1.62kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 53.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
